Hitachi

ZX75US

Excavator

Operating Weight
15,653 lb
Max Digging Depth
162 in
Max Digging Depth
182 in
Net Power
54.0 hp
All excavators

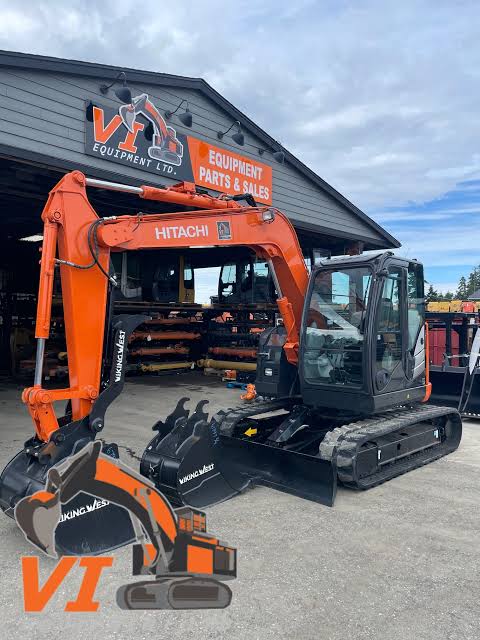

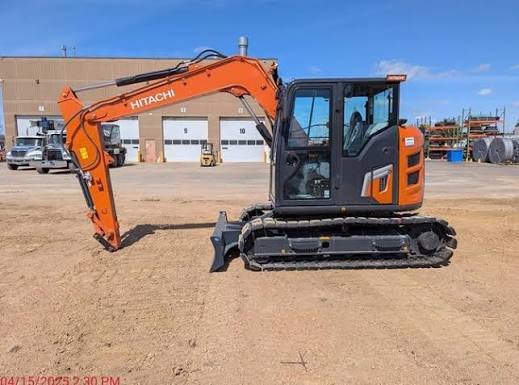

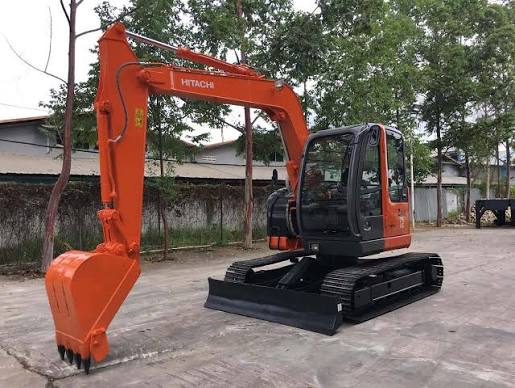

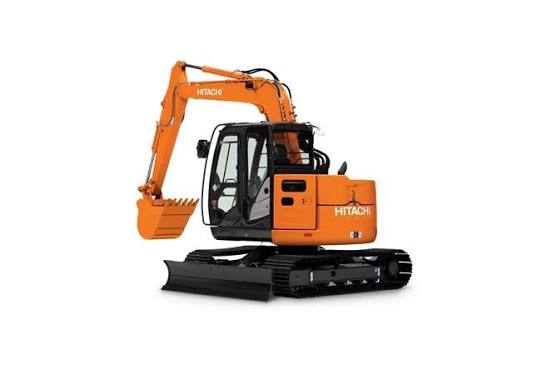

Hitachi ZX75US Excavator
1 / 5
Image 1 of 5
Image: hitachicm.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,653 lb
Fuel Capacity31.8 gal
Hydraulic Pump Flow Capacity36.7 gal/min
Hydraulic System Fluid Capacity23.8 gal
Hydraulic System Relief Valve Pressure4,550 psi
Engine Oil Capacity3.2 gal
Cooling System Fluid Capacity2.5 gal
Operating Voltage24 V
Alternator Supplied Amperage30 A

Engine

Engine specifications
Engine ModelCC-4JG1
Displacement187 in³
Power Measured @2,100 rpm
Net Power54.0 hp
Number of Cylinders4
Torque Measured @1,800 rpm
Max Torque145 lb-ft

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab107 in
Tail Swing Radius48 in
Width to Outside of Tracks93 in
Removal Counterweight Clearance30 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge74 in
Number of Track Rollers per Side5
Max Travel Speed3.2 mph
Shoe Size18 in
Number of Shoes per Side40
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth162 in
Max Reach Along Ground247 in
Max Loading Height202 in
Max Vertical Wall Digging Depth145 in
Max Cutting Height284 in
Shipping Length of Unit231 in
Shipping Height of Unit107 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
Maximum Bucket Capacity0.50 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth182 in
Max Vertical Wall Digging Depth167 in
Max Cutting Height300 in
Max Loading Height217 in
Max Reach Along Ground267 in
Shipping Length of Unit235 in
Shipping Height of Unit111 in
