Hitachi
Tata Hitachi
EX70
Excavator
39 specifications
1 / 5

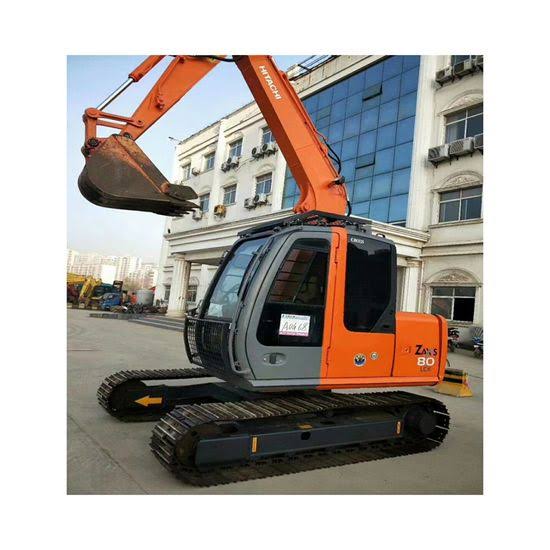

Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 15,905 lb |
|---|---|
| Fuel Capacity | 35.7 gal |
| Hydraulic Pump Flow Capacity | 33.3 gal/min |
| Hydraulic System Fluid Capacity | 26.4 gal |
| Hydraulic System Relief Valve Pressure | 4,550 psi |
| Engine Oil Capacity | 3.2 gal |
| Cooling System Fluid Capacity | 2.5 gal |
| Alternator Supplied Amperage | 30 A |
Engine
| Engine Model | CC-4JG1 |
|---|---|
| Displacement | 187 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 52.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 142 lb-ft |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 102 in |
| Tail Swing Radius | 70 in |
| Width to Outside of Tracks | 88 in |
| Removal Counterweight Clearance | 30 in |
| Digging Depth | 180 in |
| Digging Reach | 180 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 70 in |
| Number of Track Rollers per Side | 5 |
| Max Travel Speed | 3.1 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 38 |
| Number of Carrier Rollers per Side | 1 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 165 in |
|---|---|
| Max Reach Along Ground | 244 in |
| Max Loading Height | 199 in |
| Max Vertical Wall Digging Depth | 148 in |
| Max Cutting Height | 282 in |
| Shipping Length of Unit | 240 in |
| Shipping Height of Unit | 103 in |
Bucket
| Reference Bucket Capacity | 0.41 yd³ |
|---|
Swing Mechanism
| Swing Speed | 11 rpm |
|---|---|
| Swing Torque | 10,200 lb-ft |
Boom/Stick Excavator Option 2
| Max Digging Depth | 185 in |
|---|---|
| Max Vertical Wall Digging Depth | 169 in |
| Max Cutting Height | 298 in |
| Max Loading Height | 216 in |
| Max Reach Along Ground | 264 in |
| Shipping Length of Unit | 241 in |
| Shipping Height of Unit | 114 in |
