Hypac

C747C

Smooth Drum Roller

Operating Weight
5,732 lb
Max Speed
7.5 mph
Drum Width
47 in
Gross Power
34.3 hp
All smooth drum rollers

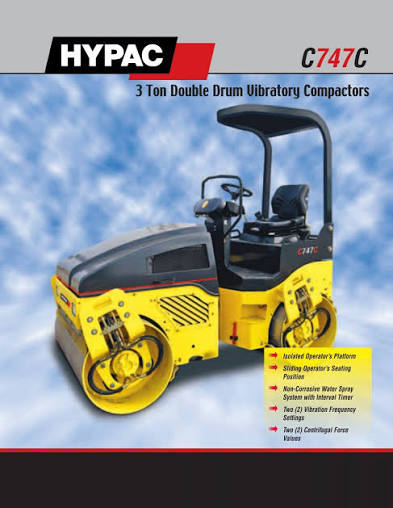

Hypac C747C Smooth Drum Roller
1 / 5
Image 1 of 5
Image: auctiontime.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,732 lb
Max Speed7.5 mph
Fuel Capacity10.6 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelD 1703 MDI
Power Measured @2,700 rpm
Gross Power34.3 hp
Number of Cylinders3
MakeDeutz

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab98 in
Wheelbase6 in
Overall Length8 in
Overall Width54 in
Turning Radius - Inside103 in

Drum

Drum specifications
Drum Width47 in
Drum Diameter19 in
Vibration Frequency 155 vpm
Vibration Frequency 270 vpm
Static Linear Load5 lb-ft
Frequency3,300 – 3,960 vpm
Nominal Amplitude - Med0 in
