Hypac

C754B

Smooth Drum Roller

Operating Weight
9,235 lb
Max Speed
6.3 mph
Gross Power
46.2 hp
All smooth drum rollers

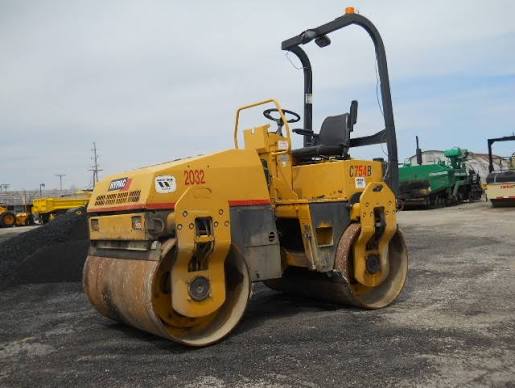

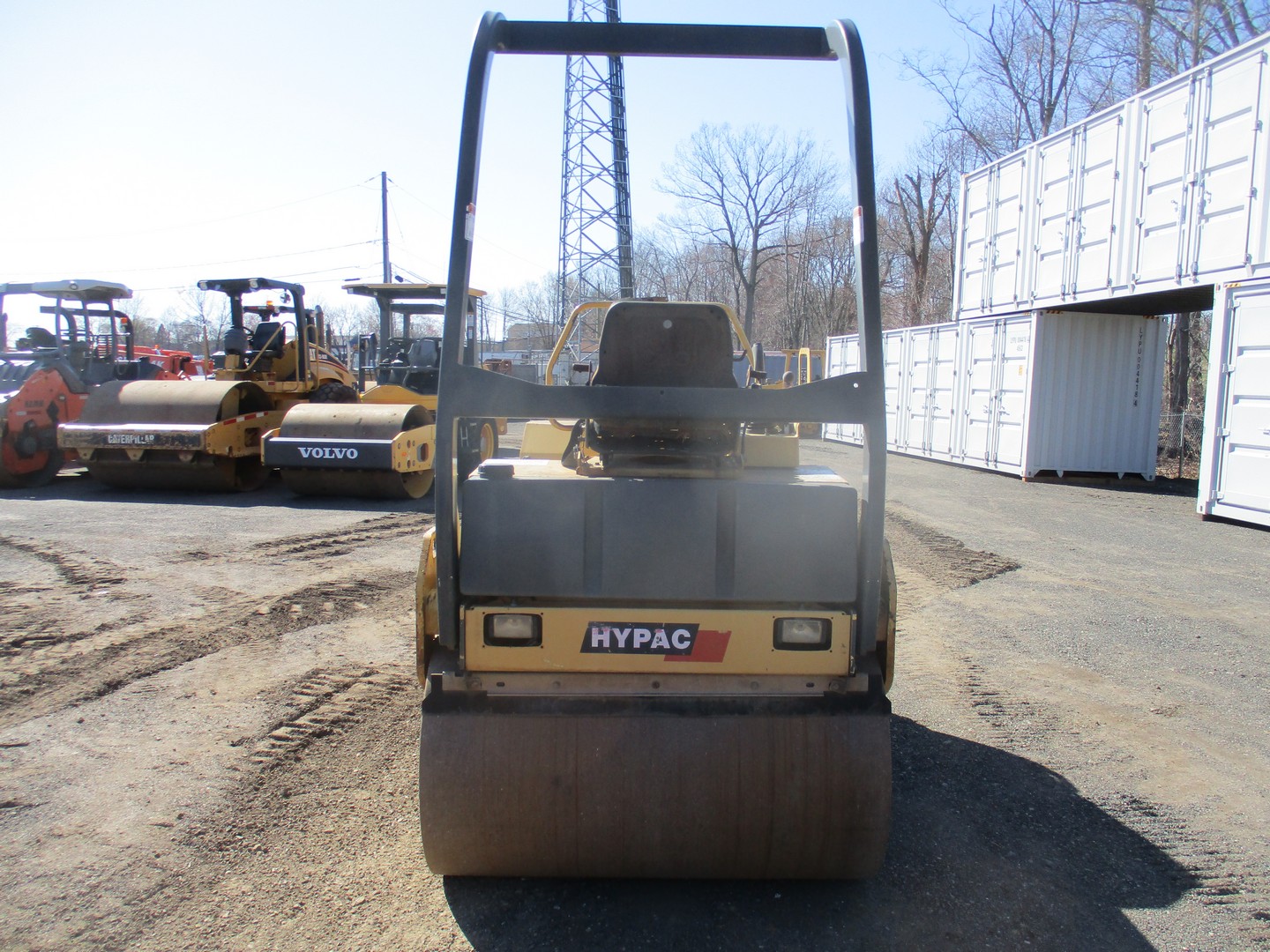

Hypac C754B Smooth Drum Roller
1 / 5
Image 1 of 5
Image: proxibid.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,235 lb
Max Speed6.3 mph
Fuel Capacity14.6 gal
Operating Width58 in
Operating Voltage12 V
Hydraulic System Fluid Capacity8.6 gal

Engine

Engine specifications
Engine ModelF3L 2011
Power Measured @2,800 rpm
Gross Power46.2 hp
Number of Cylinders3
MakeDeutz

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab107 in
Wheelbase6 in
Overall Length9 in
Overall Width66 in

Drum

Drum specifications
Drum Diameter32 in
Vibration Frequency 154 vpm
Vibration Frequency 260 vpm
Static Linear Load7 lb-ft
Vibration Frequency3,240 – 3,600 vpm
Frequency3,240 – 3,600 vpm
Nominal Amplitude - Med0 in

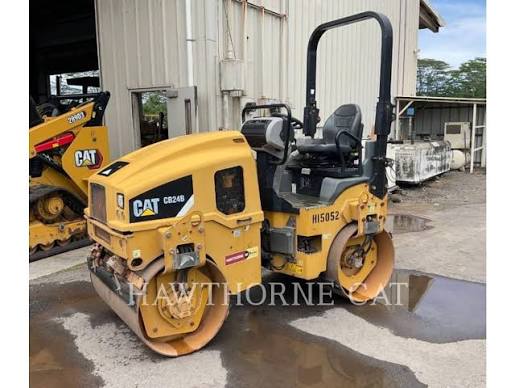

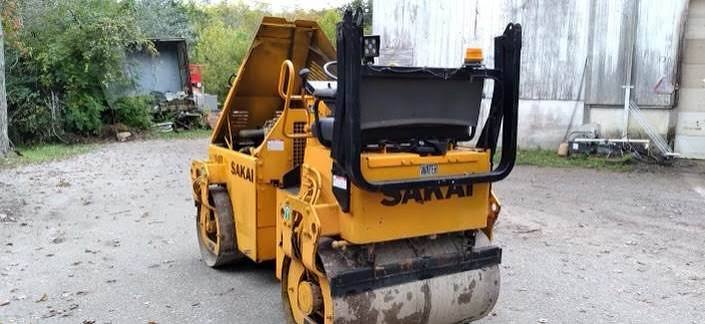

Comparable machines
