Hypac

C784

Smooth Drum Roller

Operating Weight
28,425 lb
Max Speed
10.1 mph
Drum Width
84 in
Gross Power
160.0 hp
All smooth drum rollers

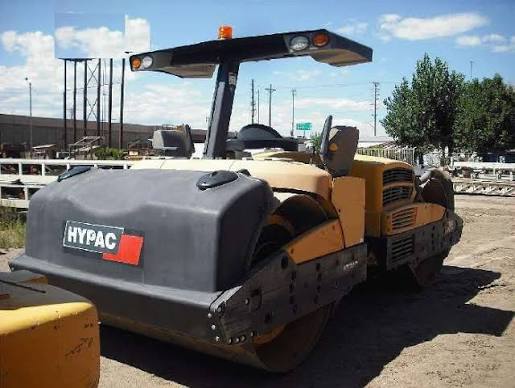

Hypac C784 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: purplewave.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,425 lb
Max Speed10.1 mph
Fuel Capacity75.0 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelQSB4.5
Gross Power160.0 hp
MakeCummins

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab107 in
Wheelbase11 in
Overall Length18 in
Overall Width47 in
Turning Radius - Inside166 in

Drum

Drum specifications
Drum Width84 in
Drum Diameter54 in
Vibration Frequency 157 vpm
Vibration Frequency 267 vpm
Static Linear Load36 lb-ft
Frequency3,400 – 4,000 vpm
Nominal Amplitude - Med0 in
