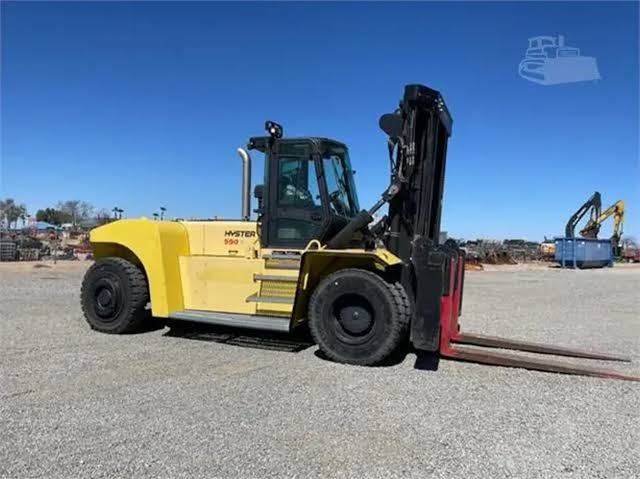

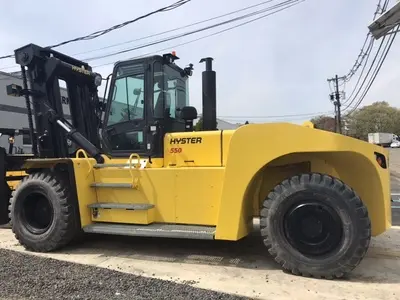

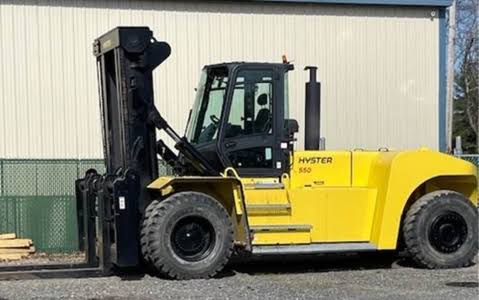

Hyster H550HD Forklift
1 / 5
Image 1 of 5
Image: easternlifttruck.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight81,589 lb
Max Speed16.0 mph
Tire TypePneumatic
Drawbar Pull54,400 lb
Fuel Capacity96.0 gal
Front Tire Size14.00 x 24-28PR
Rear Tire Size14.00 x 24-28PR
Axle load - front124,425 lb
Axle load - rear12,165 lb
Operating Voltage24 V
Hydraulic System Fluid Capacity86.0 gal

Engine

Engine specifications
Engine ModelQSB 6.7L
Displacement409 in³
Power Measured @2,200 rpm
Number of Cylinders6
Torque Measured @1,500 rpm
Engine MakeCummins
Power260.0 hp
Fuel TypeDiesel
Torque730 lb-ft
Alternator120 A
Emission Tier LevelTIER 4F
Battery900 CCA

Dimensions

Dimensions specifications
Ground Clearance16 in
Wheelbase170 in
Overall Width127 in
Turning Radius244 in
Overall Height - mast lowered138 in
Length to Fork Face256 in
Gradeability35.0 %
Height to Top of Overhead Guard133 in
Max Fork Height125 in

Transmission

Transmission specifications
Transmission TypeZF WG 211
Number of Forward / Reverse Speeds5 – 3
Drive systemPowershift Transmission

Brakes & Steering

Brakes & Steering specifications
Service brakeOil immersed (wet) disc
Parking brakeSpring apply dry disc

Mast

Mast specifications
Load Capacity55,000 lb
Load Center48 in
Lift Speed0.8 mph
Mast Tip Forward6 °
Mast Tip Rear10 °
Lower Speed1.1 mph
Max Fork Spread122 in
