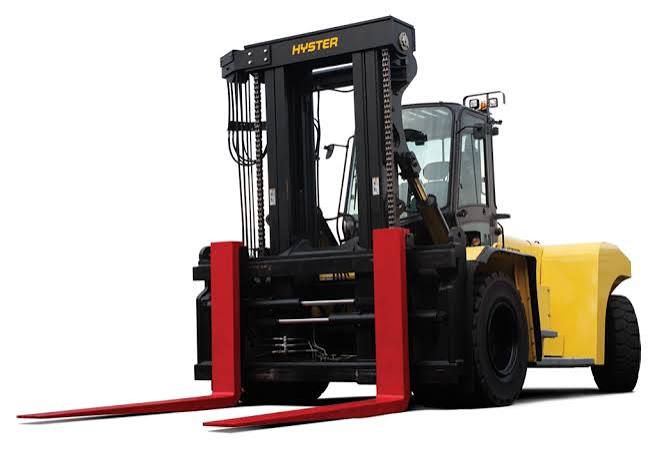

Hyster H550HDS Forklift
1 / 5
Image 1 of 5
Image: hyster.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight80,658 lb
Max Speed16.0 mph
Tire TypePneumatic
Drawbar Pull54,400 lb
Fuel Capacity80.0 gal
Front Tire Size14.00 x 24-28PR
Rear Tire Size14.00 x 24-28PR
Axle load - front124,993 lb
Axle load - rear10,666 lb
Operating Voltage24 V
Hydraulic System Fluid Capacity75.0 gal

Engine

Engine specifications
Engine ModelQSB 6.7L
Displacement409 in³
Power Measured @2,200 rpm
Number of Cylinders6
Torque Measured @1,500 rpm
Engine MakeCummins
Power260.0 hp
Fuel TypeDiesel
Torque730 lb-ft
Alternator120 A
Emission Tier LevelTIER 4F
Battery900 CCA

Dimensions

Dimensions specifications
Ground Clearance16 in
Wheelbase144 in
Overall Width127 in
Turning Radius210 in
Overall Height - mast lowered138 in
Length to Fork Face229 in
Gradeability34.0 %
Height to Top of Overhead Guard133 in
Max Fork Height125 in

Transmission

Transmission specifications
Transmission TypeZF WG 211
Number of Forward / Reverse Speeds5 – 3
Drive systemPowershift Transmission

Brakes & Steering

Brakes & Steering specifications
Service brakeOil immersed (wet) disc
Parking brakeSpring apply dry disc

Mast

Mast specifications
Load Capacity55,000 lb
Load Center36 in
Lift Speed0.8 mph
Mast Tip Forward6 °
Mast Tip Rear10 °
Lower Speed1.1 mph
Max Fork Spread94 in
