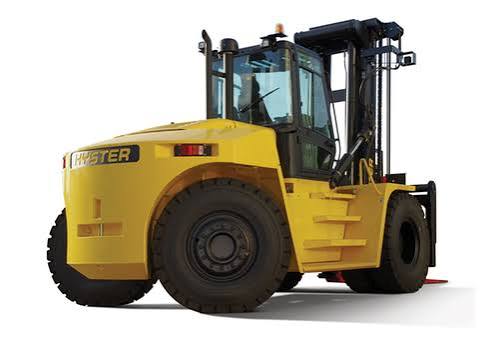

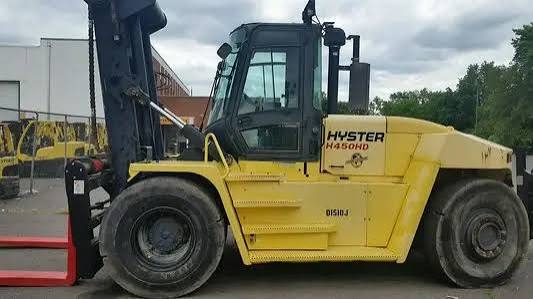

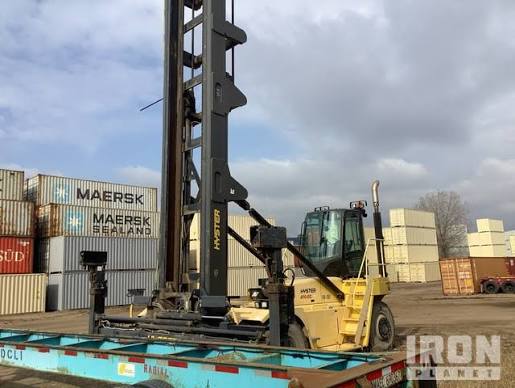

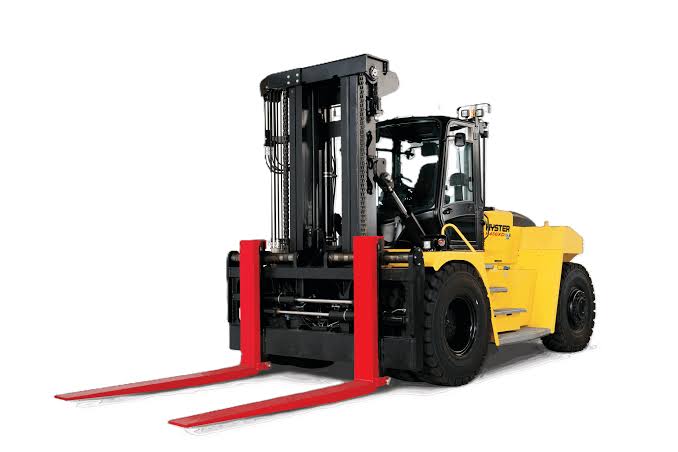

Hyster H450HDS Forklift
1 / 5
Image 1 of 5
Image: industrialmachinerydigest.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight61,963 lb
Max Speed16.0 mph
Tire TypePneumatic
Drawbar Pull43,500 lb
Fuel Capacity80.0 gal
Front Tire Size14.00 x 24
Rear Tire Size14.00 x 24
Axle load - front102,127 lb
Axle load - rear9,290 lb
Operating Voltage24 V
Hydraulic System Fluid Capacity54.0 gal
DEF tank capacity10.0 gal

Engine

Engine specifications
Engine ModelQSB 6.7L
Displacement409 in³
Power Measured @2,000 rpm
Number of Cylinders6
Torque Measured @1,500 rpm
Engine MakeCummins
Power220.0 hp
Fuel TypeDiesel
Torque700 lb-ft
Alternator120 A
Emission Tier LevelTIER 4F
Battery900 CCA

Dimensions

Dimensions specifications
Ground Clearance15 in
Wheelbase138 in
Overall Width115 in
Turning Radius194 in
Overall Height - mast lowered167 in
Length to Fork Face216 in
Gradeability34.0 %
Height to Top of Overhead Guard133 in
Max Fork Height183 in
Right Angle Stack365 in

Transmission

Transmission specifications
Transmission TypeZF WG 211
Number of Forward / Reverse Speeds5 – 3
Drive systemPowershift Transmission

Brakes & Steering

Brakes & Steering specifications
Service brakeOil immersed (wet) disc
Parking brakeDry Disc on Drive Axle

Mast

Mast specifications
Load Capacity45,000 lb
Load Center36 in
Lift Speed0.6 mph
Mast Tip Forward10 °
Mast Tip Rear12 °
Lower Speed1.1 mph
Max Fork Spread107 in
