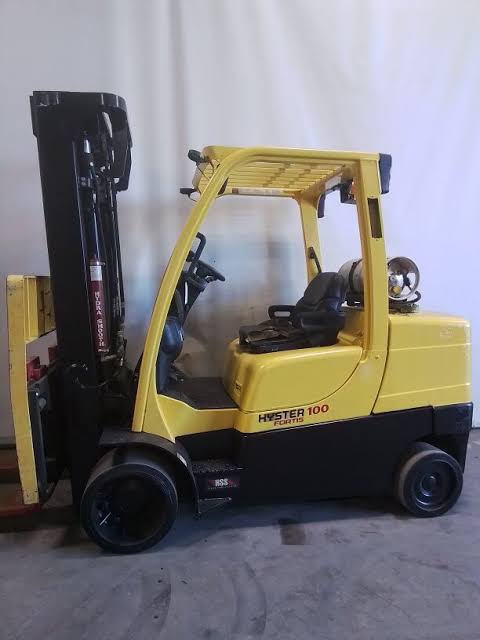

HysterHyster
H110FT
Forklift
38 specifications
1 / 5
Image 1 of 5
Specifications
34 data points
Operating Specifications
| Operating Weight | 15,329 lb |
|---|---|
| Max Speed | 10.5 mph |
| Number of Front Wheels | — |
| Number of Rear Wheels | 2 |
| Tire Type | Cushion |
| Drawbar Pull | 3,803 lb |
| Hydraulic System Relief Valve Pressure | 2,250 psi |
| Front Tire Size | 22 X 12 x 16 |
| Rear Tire Size | 18 x 8 x 12.2 |
| Axle load - front | 6,338 lb |
| Axle load - rear | 8,991 lb |
| Hydraulic Tank | 20.6 gal |
Engine
| Engine Model | WG3800 LPG |
|---|---|
| Displacement | 230 in³ |
| Power Measured @ | 2,400 rpm |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,000 rpm |
| Engine Make | Kubota |
| Power | 91.0 hp |
| Torque | 221 lb-ft |
Dimensions
| Ground Clearance | 6 in |
|---|---|
| Wheelbase | 71 in |
| Overall Width | 47 in |
| Turning Radius | 97 in |
| Overall Height - mast lowered | 85 in |
| Length to Fork Face | 109 in |
| Gradeability | 32.0 % |
| Height to Top of Overhead Guard | 86 in |
Mast
| Load Capacity | 10,000 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 1.3 mph |
| Mast Tip Forward | 5 ° |
| Mast Tip Rear | 6 ° |
| Lower Speed | 1.2 mph |
