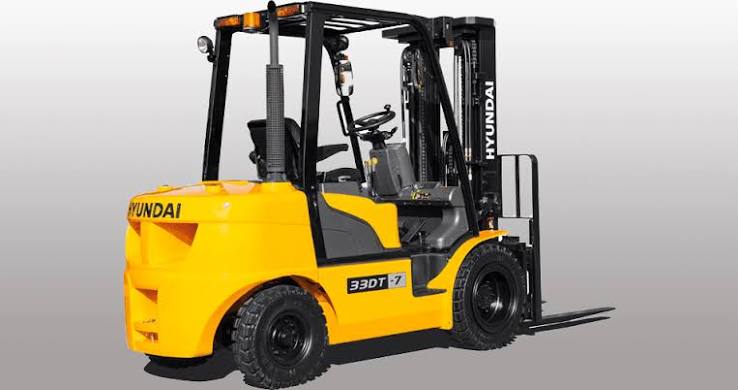

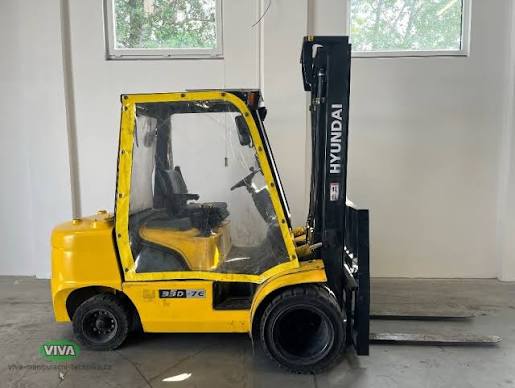

Hyundai 33D-7 Forklift
1 / 5
Image 1 of 5
Image: hyundaimaterialhandling.com.au

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,633 lb
Max Speed12.3 mph
Number of Front Wheels2
Number of Rear Wheels2
Tire TypePneumatic

Engine

Engine specifications
Engine ModelV3300
Displacement203 in³
Number of Cylinders4
Power63.1 hp
Fuel TypeDiesel

Dimensions

Dimensions specifications
Ground Clearance5 in
Wheelbase67 in
Overall Width49 in
Turning Radius97 in
Overall Height - mast lowered86 in
Length to Fork Face109 in
Height to Top of Overhead Guard86 in
Max Fork Height126 in

Mast

Mast specifications
Load Capacity6,500 lb
Load Center24 in
Lift Speed1.1 mph
Mast Tip Forward6 °
Mast Tip Rear10 °
Lower Speed1.1 mph
