Hyundai

HL730XTD-7A

Wheel Loader

Operating Weight
21,826 lb
Bucket Capacity - heaped
2.39 yd³
Gross Power
125.0 hp
Net Power
119.0 hp
All wheel loaders

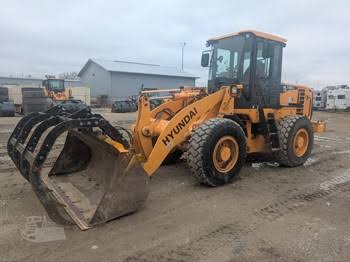

Hyundai HL730XTD-7A Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight21,826 lb
Fuel Capacity53.4 gal
Tire Size17.5-25 12PR L3
Hydraulic System Fluid Capacity42.3 gal
Static Tipping Weight15,476 lb
Operating Voltage24 V
Engine Oil Fluid Capacity3.0 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity4.9 gal
Rear Axle/Diff Fluid Capacity4.9 gal
Cooling System Fluid Capacity8.0 gal
Transmission Fluid Capacity5.3 gal
Rated Bucket Capacity2.39 yd³

Engine

Engine specifications
Engine ModelQSB4.5
Displacement275 in³
Gross Power125.0 hp
Net Power119.0 hp
Aspirationturbocharged
MakeCummins

Weights

Weights specifications
Operating Weight21,830 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity37.0 gal/min
Raise Time5.6 s
Lower Time2.8 s
Dump Time1.0 s
Relief Valve Setting2,990 psi
Pump Typehelical gear type

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab126 in
Wheelbase109 in
Width Over Tires97 in
Reach at Max Lift and Dump41 in
Length with Bucket on Ground284 in
Hinge Pin - Max Height157 in

Transmission

Transmission specifications
Max Speed - Forward22.4 mph
Max Speed - Reverse14.4 mph
Transmission Typefull automatic powershift countershaft type
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.39 yd³
Bucket Capacity - struck2.00 yd³
Dump Clearance at Max Raise121 in
Breakout Force20,990 lb
