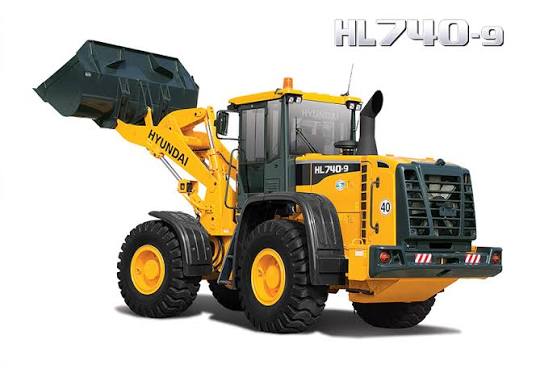

Hyundai
HL740-9A
- Operating Weight
- 28,000 lb
- Bucket Capacity - heaped
- 3.10 yd³
- Gross Power
- 158.0 hp
- Net Power
- 156.0 hp
1 / 5
Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 28,000 lb |
|---|---|
| Fuel Capacity | 58.2 gal |
| Tire Size | 20.5-25 L3 |
| Hydraulic System Fluid Capacity | 45.5 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 6.4 gal |
| Rear Axle/Diff Fluid Capacity | 6.1 gal |
| Cooling System Fluid Capacity | 9.0 gal |
| Transmission Fluid Capacity | 6.7 gal |
| Rated Bucket Capacity | 3.00 yd³ |
Engine
| Engine Model | QSB6.7 |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 158.0 hp |
| Net Power | 156.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Engine Make | CUMMINS |
| Make | Cummins |
| Bore | 4 in |
| Stroke | 5 in |
| Torque | 591 lb-ft |
| Air cleaner | Dry Two stages dual elements |
Weights
| Operating Weight | 28,000 lb |
|---|
Hydraulic System
| Raise Time | 5.5 s |
|---|---|
| Lower Time | 3.0 s |
| Dump Time | 1.1 s |
| Pump Type | Variable axial piston type |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 128 in |
| Wheelbase | 115 in |
| Reach at Max Lift and Dump | 41 in |
| Length with Bucket on Ground | 289 in |
Transmission
| Max Speed - Forward | 24.5 mph |
|---|---|
| Max Speed - Reverse | 25.3 mph |
| Transmission Type | Full automatic power shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 3.10 yd³ |
|---|---|
| Bucket Capacity - struck | 2.69 yd³ |
| Dump Clearance at Max Raise | 110 in |
| Breakout Force | 24,800 lb |
General Specifications
| Operating Weight lbs (kg) | 28,000 (12 700) — Starting 2016 Model Year |
|---|---|
| Bucket Capacity cu. yd. (cu m) | 3.0 (2.3) — Starting 2016 Model Year |
| Engine type | Cummins QSB6.7 — Starting 2016 Model Year |
| Max Dump Height ft.( m) | 9.2 (2.8) — Starting 2016 Model Year |
| Engine Power HP (KW) | 156 (116.3) — Starting 2016 Model Year |
