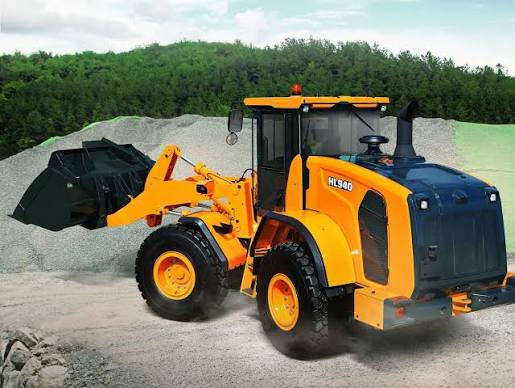

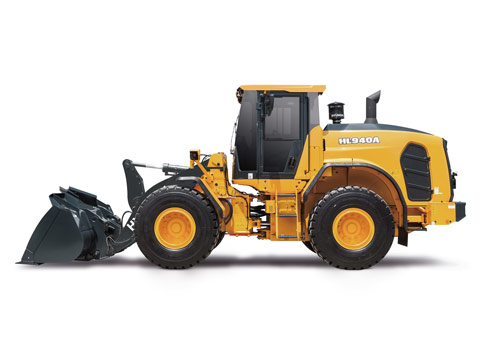

Hyundai
HL940
- Operating Weight
- 28,881 lb
- Bucket Capacity - heaped
- 3.10 yd³
- Gross Power
- 158.0 hp
- Net Power
- 156.0 hp
1 / 5
Image 1 of 5
Specifications
58 data points
Operating Specifications
| Operating Weight | 28,881 lb |
|---|---|
| Fuel Capacity | 58.2 gal |
| Tire Size | 20.5 R25 |
| Hydraulic System Fluid Capacity | 34.4 gal |
| Operating Voltage | 24 V |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 95 A |
| Front Axle/Diff Fluid Capacity | 6.4 gal |
| Rear Axle/Diff Fluid Capacity | 6.4 gal |
| Cooling System Fluid Capacity | 9.0 gal |
| Transmission Fluid Capacity | 7.2 gal |
| Rated Bucket Capacity | 3.00 yd³ |
Engine
| Engine Model | QSB6.7 |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 158.0 hp |
| Net Power | 156.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,500 rpm |
| Engine Make | CUMMINS |
| Make | Cummins |
| Bore | 4 in |
| Stroke | 5 in |
| Torque | 622 lb-ft |
| Air cleaner | Dry Two stage dual elements |
Weights
| Operating Weight | 29,320 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 39.0 gal/min |
|---|---|
| Raise Time | 5.5 s |
| Lower Time | 3.0 s |
| Dump Time | 1.1 s |
| Pump Type | Variable displacement piston pump |
| Relief Valve Pressure | 2,987 psi |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 131 in |
| Wheelbase | 117 in |
| Reach at Max Lift and Dump | 61 in |
| Length with Bucket on Ground | 293 in |
Transmission
| Max Speed - Forward | 24.9 mph |
|---|---|
| Max Speed - Reverse | 26.1 mph |
| Transmission Type | Full automatic power shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.10 yd³ |
|---|---|
| Bucket Capacity - struck | 2.69 yd³ |
| Dump Clearance at Max Raise | 110 in |
| Breakout Force | 24,800 lb |
| Bucket Width | 103 in |
General Specifications
| Operating Weight | 29,321 (13,300) Starting 2024 Model Year |
|---|---|
| Operating Weight lbs (kg) | 29,321 (13,300) Starting 2025 Model Year |
| Bucket Capacity | 3.0 (2.3) Starting 2019 Model Year |
| Bucket Capacity cu. yd. (cu m) | 3.0 (2.3) Starting 2025 Model Year |
| Engine type | Cummins QSB6.7 Starting 2019 Model Year |
| Engine Power | 156 (116) Starting 2024 Model Year |
| Max Dump Height | 9.2 (2.79) Starting 2019 Model Year |
| Max Dump Height ft.( m) | 9.2 (2.79) Starting 2025 Model Year |
| OperatingWeight lbs. (kg) | 29,321 (13,300) Starting 2026 Model Year |
| Engine Power Gross hp (kW) | 156 (116) Starting 2025 Model Year |
