Hyundai

ROBEX 75-7

Excavator

Operating Weight
16,380 lb
Max Digging Depth
157 in
Net Power
55.5 hp
All excavators

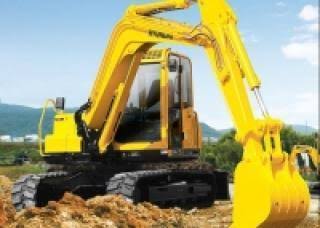

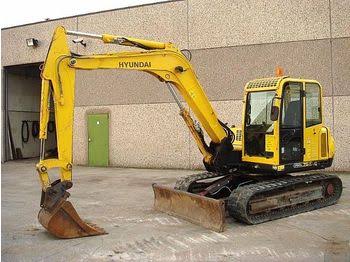

Hyundai ROBEX 75-7 Excavator
1 / 5
Image 1 of 5
Image: filesmart.sellfy.store

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,380 lb
Fuel Capacity34.4 gal
Hydraulic Pump Flow Capacity53.7 gal/min
Hydraulic System Fluid Capacity22.5 gal
Hydraulic System Relief Valve Pressure3,700 psi
Engine Oil Capacity2.0 gal
Cooling System Fluid Capacity2.7 gal

Engine

Engine specifications
Engine ModelS4S
Displacement203 in³
Power Measured @2,300 rpm
Net Power55.5 hp

Dimensions

Dimensions specifications
Height - Top of Cab101 in
Tail Swing Radius62 in
Width to Outside of Tracks85 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge67 in
Max Travel Speed3.0 mph
Shoe Size18 in
Drawbar Pull12,920 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth157 in
Max Reach Along Ground263 in
Max Loading Height179 in
Max Vertical Wall Digging Depth127 in
Max Cutting Height257 in
Shipping Length of Unit247 in
Shipping Height of Unit101 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
