Hyundai
Tata Hitachi
EX70
Excavator
39 specifications
1 / 5

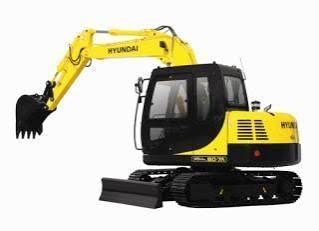

Image 1 of 5
Specifications
38 data points
Operating Specifications
| Operating Weight | 17,200 lb |
|---|---|
| Fuel Capacity | 35.7 gal |
| Hydraulic Pump Flow Capacity | 40.0 gal/min |
| Hydraulic System Fluid Capacity | 34.4 gal |
| Hydraulic System Relief Valve Pressure | 3,130 psi |
| Engine Oil Capacity | 3.2 gal |
| Cooling System Fluid Capacity | 2.9 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.4 gal |
| Alternator Supplied Amperage | 40 A |
Engine
| Engine Model | 4TNV94L |
|---|---|
| Displacement | 202 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 60.0 hp |
| Net Power | 58.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,000 rpm |
| Max Torque | 247 lb-ft |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 104 in |
| Tail Swing Radius | 70 in |
| Width to Outside of Tracks | 88 in |
| Removal Counterweight Clearance | 30 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 70 in |
| Number of Track Rollers per Side | 5 |
| Max Travel Speed | 3.0 mph |
| Shoe Size | 18 in |
| Number of Shoes per Side | 38 |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 11,700 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 165 in |
|---|---|
| Max Reach Along Ground | 245 in |
| Max Loading Height | 204 in |
| Max Vertical Wall Digging Depth | 126 in |
| Max Cutting Height | 287 in |
Bucket
| Reference Bucket Capacity | 0.41 yd³ |
|---|
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
