IHI

15NX-2

Mini Excavator

Operating Weight
3,850 lb
Max Digging Depth
84 in
Net Power
14.0 hp
All mini excavators

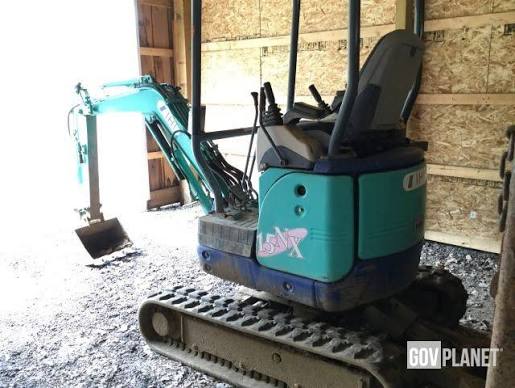

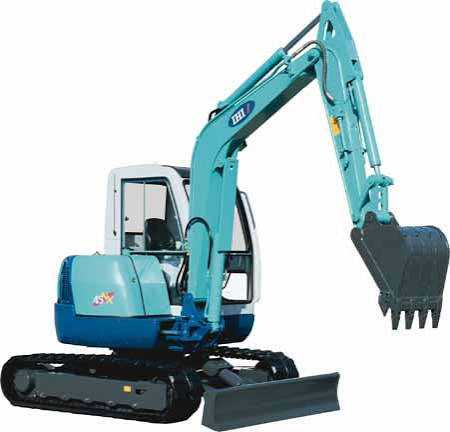

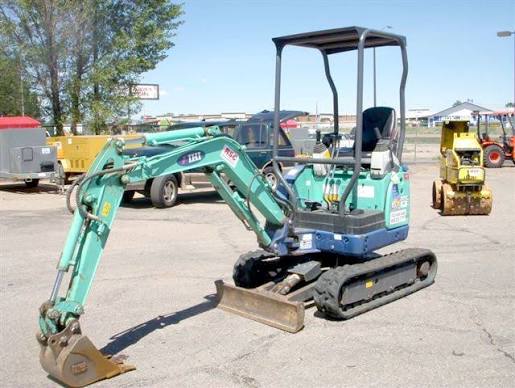

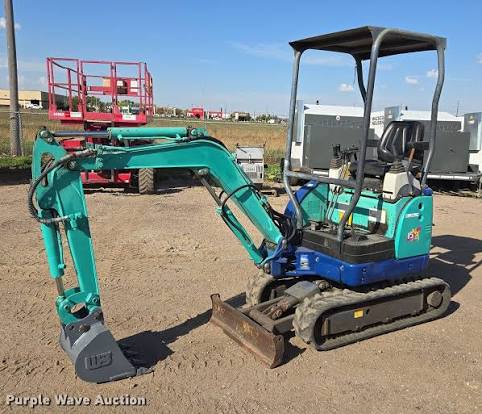

IHI 15NX-2 Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,850 lb
Fuel Capacity5.3 gal
Hydraulic Pump Flow Capacity12.7 gal/min
Hydraulic System Relief Valve Pressure2,988 psi

Engine

Engine specifications
Engine Model3TNV70
Net Power14.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab90 in
Tail Swing Radius26 in
Width to Outside of Tracks40 in
Removal Counterweight Clearance18 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge29 in
Max Travel Speed2.5 mph
Shoe Size9 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth84 in
Max Vertical Wall Digging Depth71 in
Max Loading Height102 in
Shipping Length of Unit133 in
Max Cutting Height143 in
Shipping Height of Unit90 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
