IHI

45NX

Mini Excavator

Operating Weight
10,505 lb
Max Digging Depth
144 in
Net Power
43.2 hp
All mini excavators

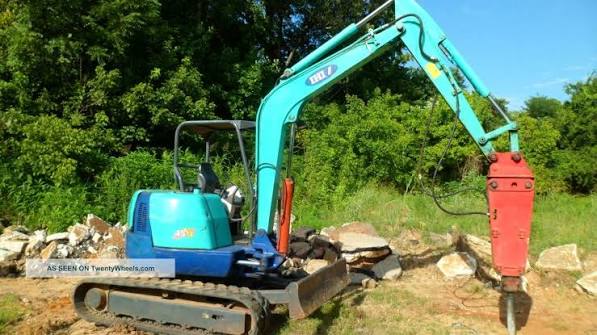

IHI 45NX Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,505 lb
Fuel Capacity17.2 gal
Hydraulic Pump Flow Capacity41.5 gal/min
Hydraulic System Relief Valve Pressure2,990 psi

Engine

Engine specifications
Engine Model4LE2
Net Power43.2 hp

Dimensions

Dimensions specifications
Height - Top of Cab96 in
Tail Swing Radius46 in
Width to Outside of Tracks78 in
Removal Counterweight Clearance25 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge61 in
Max Travel Speed3.0 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth144 in
Max Vertical Wall Digging Depth108 in
Max Loading Height146 in
Shipping Length of Unit209 in
Max Cutting Height210 in
Shipping Height of Unit96 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
