IHI

70Z

Mini Excavator

Operating Weight
16,055 lb
Max Digging Depth
169 in
Net Power
57.0 hp
All mini excavators

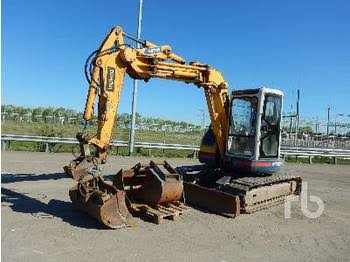

IHI 70Z Mini Excavator
1 / 5
Image 1 of 5
Image: blackdogtracks.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,055 lb
Fuel Capacity19.8 gal
Hydraulic Pump Flow Capacity52.0 gal/min
Hydraulic System Relief Valve Pressure3,555 psi

Engine

Engine specifications
Engine ModelAA4JGI
Net Power57.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab102 in
Tail Swing Radius43 in
Removal Counterweight Clearance29 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Max Travel Speed3.1 mph
Shoe Size18 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth169 in
Max Vertical Wall Digging Depth131 in
Max Loading Height204 in
Shipping Length of Unit219 in
Max Cutting Height283 in
Shipping Height of Unit102 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
