Ingersoll Rand

DD-118HF

Smooth Drum Roller

Operating Weight
27,260 lb
Gross Power
125.0 hp
All smooth drum rollers

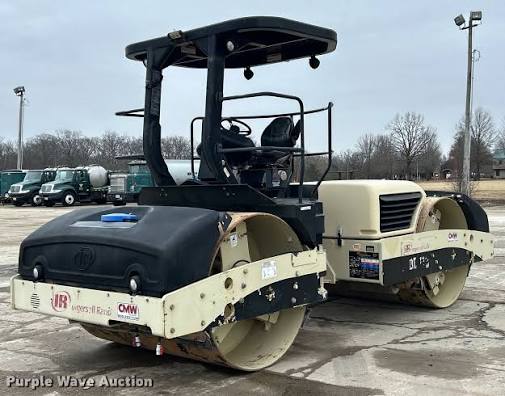

Ingersoll Rand DD-118HF Smooth Drum Roller
1 / 5
Image 1 of 5
Image: constructionequipmentguide.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,260 lb
Fuel Capacity53.1 gal
Operating Width87 in
Operating Voltage12 V
Hydraulic System Fluid Capacity34.9 gal
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelB3.9-C125
Gross Power125.0 hp
Aspirationturbocharged
MakeCummins

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab125 in
Wheelbase12 in
Overall Length20 in
Overall Width88 in
Turning Radius - Inside149 in

Drum

Drum specifications
Drum Diameter55 in
Vibration Frequency 157 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High42,669 lb
Vibration Frequency3,400 vpm
Centrifugal Force - Low22,975 lb
Nominal Amplitude - Low0 in
