Ingersoll Rand

DD118HFA

Smooth Drum Roller

Operating Weight
27,260 lb
Max Speed
6.6 mph
Gross Power
125.0 hp
All smooth drum rollers

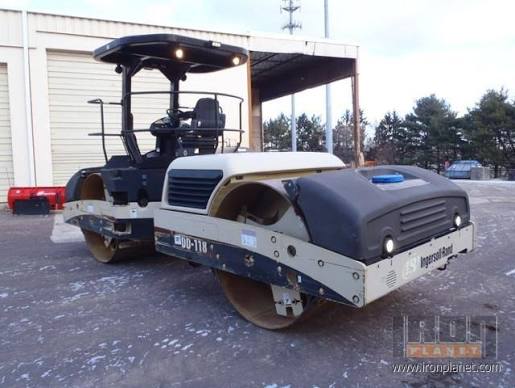

Ingersoll Rand DD118HFA Smooth Drum Roller
1 / 5
Image 1 of 5
Image: iafsausa.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,260 lb
Max Speed6.6 mph
Fuel Capacity53.1 gal
Operating Width87 in
Operating Voltage12 V
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelB3.9-C125
Gross Power125.0 hp
MakeCummins

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab125 in
Wheelbase12 in
Overall Length20 in
Overall Width88 in
Turning Radius - Inside149 in

Drum

Drum specifications
Drum Diameter55 in
Vibration Frequency 170 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High42,062 lb
Vibration Frequency3,000 – 4,200 vpm
Centrifugal Force - Low33,092 lb
Nominal Amplitude - Low0 in
