Ingersoll Rand

DD132HF

Smooth Drum Roller

Operating Weight
30,314 lb
Max Speed
6.2 mph
Drum Width
84 in
Gross Power
155.6 hp
All smooth drum rollers

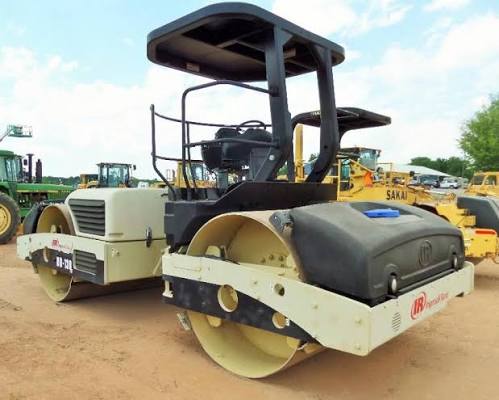

Ingersoll Rand DD132HF Smooth Drum Roller
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,314 lb
Max Speed6.2 mph
Fuel Capacity68.5 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity36.5 gal
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelQSB5.9-155
Gross Power155.6 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab126 in
Wheelbase12 in
Overall Length20 in
Overall Width93 in

Drum

Drum specifications
Drum Width84 in
Drum Diameter55 in
Vibration Frequency 145 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High41,725 lb
Vibration Frequency 267 vpm
Centrifugal Force - Low36,689 lb
Nominal Amplitude - Low0 in
