Ingersoll Rand

DD90

Smooth Drum Roller

Operating Weight
21,820 lb
Max Speed
7.4 mph
Drum Width
66 in
All smooth drum rollers

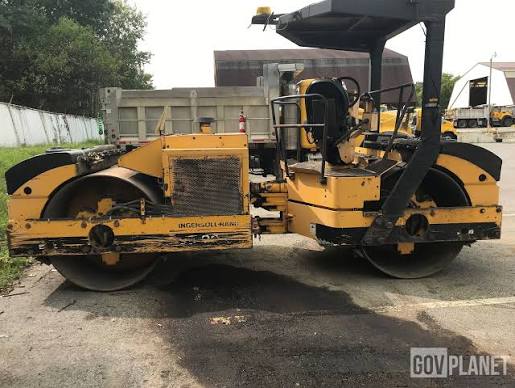

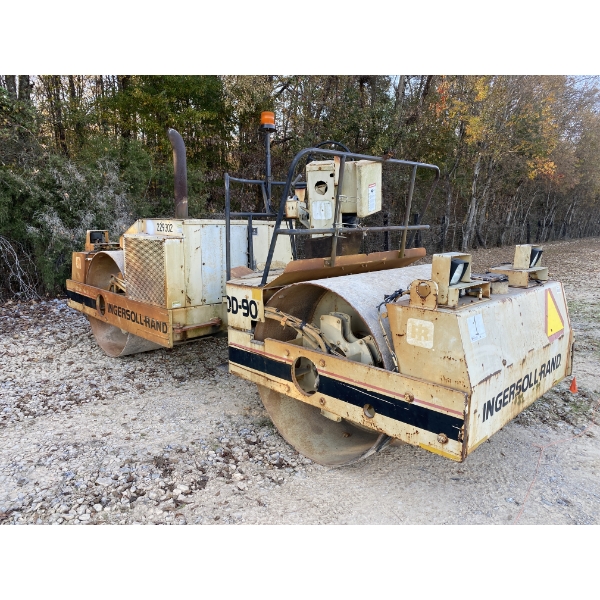

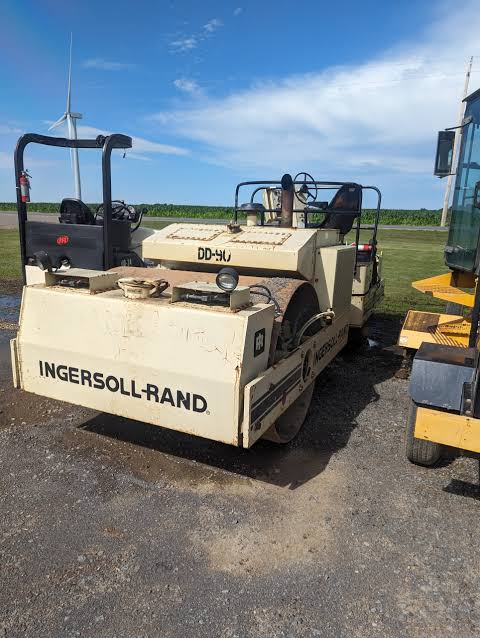

Ingersoll Rand DD90 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight21,820 lb
Max Speed7.4 mph
Fuel Capacity45.0 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity35.0 gal
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelB3.9-C
Net Power110.0 hp
AspirationTurbocharged 4-cylinder
MakeCummins

Dimensions

Dimensions specifications
Height - Top of Cab111 in
Overall Length17 in
Turning Radius - Outside217 in

Drum

Drum specifications
Drum Width66 in
Drum Diameter48 in
Vibration Frequency 142 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High26,000 lb
Vibration Frequency 231 vpm
Vibration Frequency1,850 – 2,500 vpm
Centrifugal Force - Low5,840 lb
Nominal Amplitude - Low0 in
