Ingersoll Rand

PF4410

Asphalt Paver

Operating Weight w/ Screed
31,500 lb
Paving Width - max
300 in
Length w/ Screed
206 in
All asphalt pavers

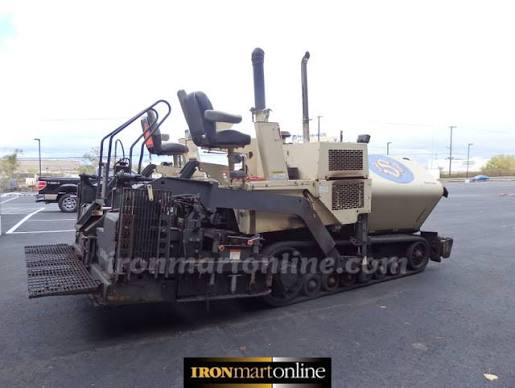

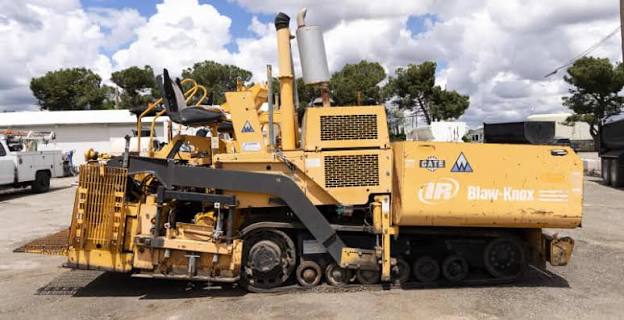

Ingersoll Rand PF4410 Asphalt Paver
1 / 5
Image 1 of 5
Image: skidheaven.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/ Screed31,500 lb
Operating Weight w/o Screed28,900 lb
Fuel Capacity38.1 gal
Hydraulic System Fluid Capacity39.9 gal
Operating Voltage12 V
Cooling System Fluid Capacity6.7 gal
Alternator Supplied Amperage130 A

Engine

Engine specifications
Engine ModelQSB 5.9-3OT
Net Power158.0 hp

Dimensions

Dimensions specifications
Length of Track on Ground103 in
Transport Width100 in
Transport Height124 in
Track Width14 in
Length w/ Screed206 in
Width w/ Hopper Open126 in

Hopper/Paver

Hopper/Paver specifications
Paving Width - max300 in
Paving Speed - max2.8 mph
Hopper Capacity6 lb
Travel Speed - max8.6 mph
Auger Diameter16 in
Paving Thickness - max8 in
