Ingersoll Rand

PF5510

Asphalt Paver

Operating Weight w/ Screed
36,950 lb
Paving Width - max
360 in
Length w/ Screed
234 in
All asphalt pavers

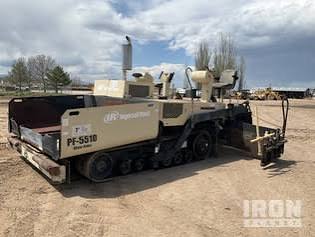

Ingersoll Rand PF5510 Asphalt Paver
1 / 5
Image 1 of 5
Image: skidheaven.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/ Screed36,950 lb
Operating Weight w/o Screed32,450 lb
Fuel Capacity53.9 gal
Hydraulic System Fluid Capacity53.9 gal
Operating Voltage12 V
Cooling System Fluid Capacity7.1 gal
Alternator Supplied Amperage130 A

Engine

Engine specifications
Engine ModelQSB 5.9-30TAA
Net Power188.0 hp

Dimensions

Dimensions specifications
Length of Track on Ground118 in
Transport Width121 in
Transport Height115 in
Track Width19 in
Length w/ Screed234 in
Width w/ Hopper Open125 in

Hopper/Paver

Hopper/Paver specifications
Paving Width - max360 in
Paving Speed - max2.6 mph
Hopper Capacity8 lb
Travel Speed - max10.1 mph
Auger Diameter16 in
Paving Thickness - max12 in
