Ingersoll Rand

SD-105DA

Smooth Drum Roller

Operating Weight
24,795 lb
Max Speed
9.3 mph
Drum Width
84 in
Gross Power
125.0 hp
All smooth drum rollers

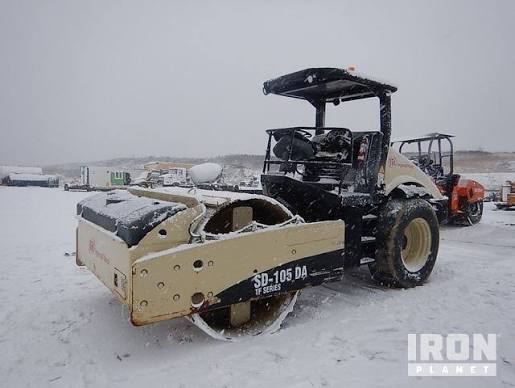

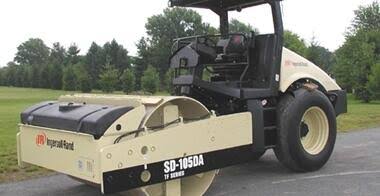

Ingersoll Rand SD-105DA Smooth Drum Roller
1 / 5
Image 1 of 5
Image: marketbook.com.na

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight24,795 lb
Max Speed9.3 mph
Operating Voltage12 V
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelB3.9-TAA
Gross Power125.0 hp

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab122 in
Wheelbase10 in
Overall Length20 in
Overall Width90 in

Drum

Drum specifications
Drum Width84 in
Drum Diameter55 in
Vibration Frequency 131 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High35,969 lb
Vibration Frequency 242 vpm
Centrifugal Force - Low8,768 lb
Nominal Amplitude - Low0 in
