Ingersoll Rand

SD-105DX

Smooth Drum Roller

Operating Weight
23,700 lb
Max Speed
6.3 mph
All smooth drum rollers

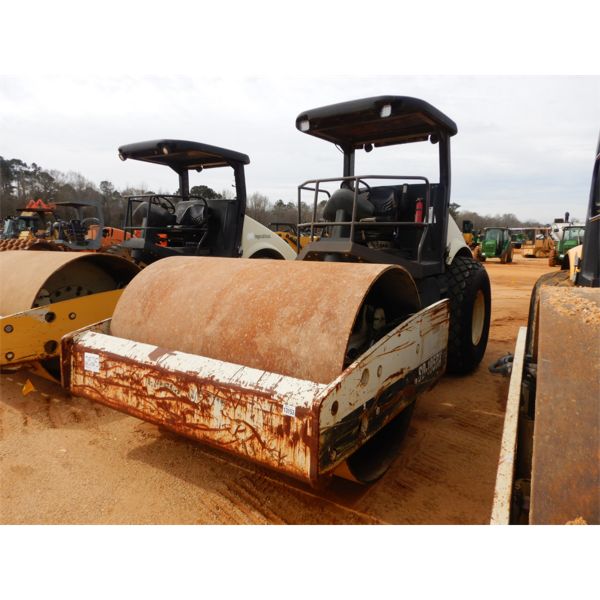

Ingersoll Rand SD-105DX Smooth Drum Roller
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,700 lb
Max Speed6.3 mph
Fuel Capacity68.0 gal
Operating Width90 in
Operating Voltage12 V
Hydraulic System Fluid Capacity22.2 gal
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelB3.9 TAA Tier 2
Net Power125.0 hp
Aspirationturbocharged
MakeCummins

Dimensions

Dimensions specifications
Height - Top of Cab122 in
Wheelbase10 in
Overall Length19 in
Overall Width90 in
Turning Radius - Inside136 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1x26 8PR R3

Drum

Drum specifications
Drum Diameter59 in
Vibration Frequency 131 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High58,001 lb
Vibration Frequency 234 vpm
Vibration Frequency1,225 – 2,025 vpm
Centrifugal Force - Low46,311 lb
Nominal Amplitude - Low0 in
