Ingersoll Rand

SD-122D

Smooth Drum Roller

Operating Weight
26,460 lb
Max Speed
7.6 mph
Drum Width
84 in
All smooth drum rollers

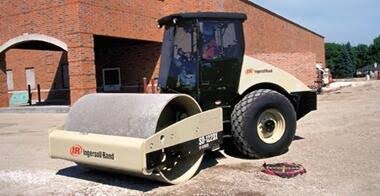

Ingersoll Rand SD-122D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: mascus.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight26,460 lb
Max Speed7.6 mph
Fuel Capacity68.0 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity22.0 gal
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelQSB5.9-3OT
Net Power156.0 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Height - Top of Cab122 in
Wheelbase10 in
Overall Length19 in
Overall Width90 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1x26 8PR R3

Drum

Drum specifications
Drum Width84 in
Drum Diameter59 in
Vibration Frequency 131 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High63,171 lb
Vibration Frequency 234 vpm
Centrifugal Force - Low46,311 lb
Nominal Amplitude - Low0 in
