Ingersoll Rand

SD-25D

Smooth Drum Roller

Operating Weight
5,850 lb
Max Speed
5.3 mph
Drum Width
42 in
All smooth drum rollers

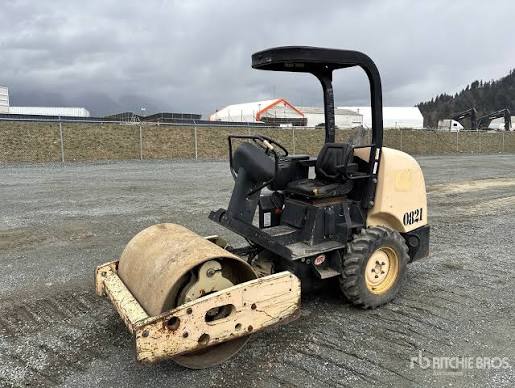

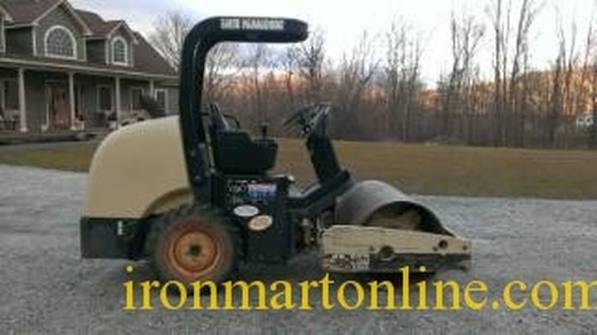

Ingersoll Rand SD-25D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,850 lb
Max Speed5.3 mph
Fuel Capacity12.0 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity15.0 gal
Alternator Supplied Amperage40 A

Engine

Engine specifications
Engine ModelV2203-M Tier II
Net Power44.0 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Height - Top of Cab89 in
Wheelbase6 in
Overall Length11 in
Overall Width50 in

Tires & Wheels

Tires & Wheels specifications
Tires8x16 6PR R1 Lug

Drum

Drum specifications
Drum Width42 in
Drum Diameter31 in
Vibration Frequency 137 vpm
Nominal Amplitude - Med0 in
Centrifugal Force - MEd12,499 lb
