JCB

160

Skid Steer Loader

Operating Weight
5,310 lb
Bucket Capacity
0.41 yd³
Max Speed
6.3 mph
All skid steer loaders

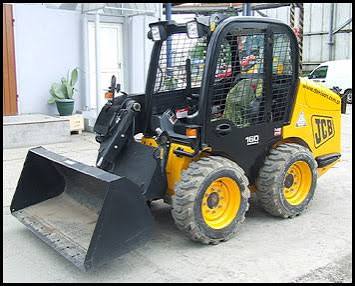

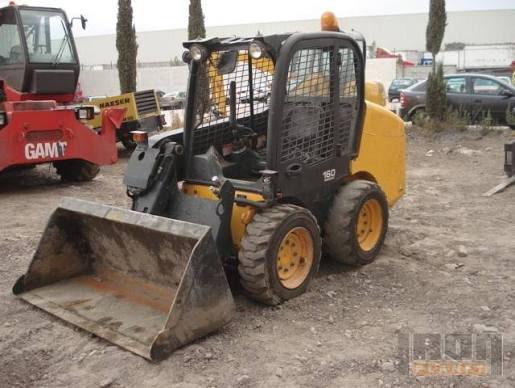

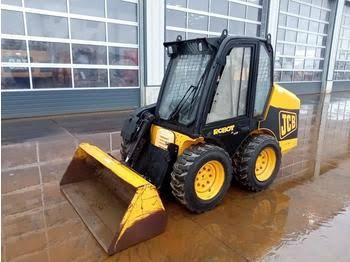

JCB 160 Skid Steer Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,310 lb
Max Speed6.3 mph
Fuel Capacity21.0 gal
Hydraulic System Fluid Capacity7.9 gal
Tire Size7.00 x 15 - 6 pr
Operating Voltage12 V
Alternator Supplied Amperage55 A
Engine Oil Fluid Capacity2.5 gal
Cooling System Fluid Capacity2.1 gal
Chain Box Fluid Capacity - each side4.5 gal

Engine

Engine specifications
Engine Model404C-22
Displacement134 in³
Power Measured @2,600 rpm
Number of Cylinders4
AspirationNaturally aspirated

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity14.5 gal/min
Relief Valve Pressure2,683 psi
Pump TypeHydrostatic drive pumps

Dimensions

Dimensions specifications
Height - Top of Cab77 in
Wheelbase40 in
Width Over Tires54 in
Reach at Max Lift and Dump23 in
Length with Bucket127 in
Clearance at Max Lift and Dump85 in
Turning Radius from Center - inc bucket74 in
Turning Radius from Center - machine rear62 in
Length w/o Bucket93 in

Loader

Loader specifications
Bucket Capacity0.41 yd³
Operating Load Rating1,323 lb
Tipping Angle2,646 °
Breakout Force2,998 psi

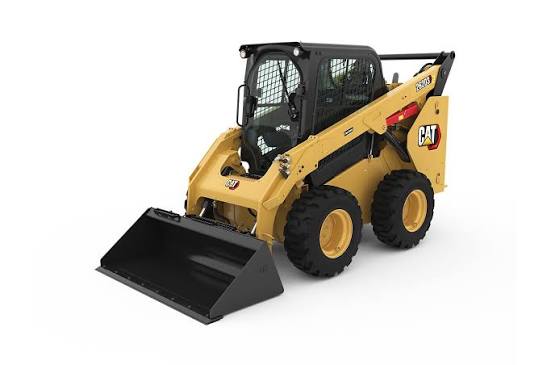

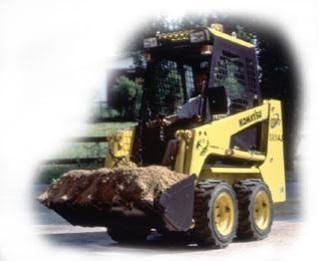

Comparable machines
