JCBJCB
8010 CTS
Mini Excavator
34 specifications
1 / 5

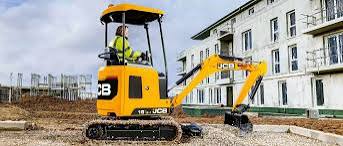

Image 1 of 5
Specifications
59 data points
Operating Specifications
| Operating Weight | 3,856 lb |
|---|---|
| Operating Voltage | 12 V |
Engine
| Engine Model | 403D-07 |
|---|---|
| Displacement | 22 in³ |
| Gross Power | 15.7 hp |
| Net Power | 14.5 hp |
| Max Torque | 34 lb-ft |
| Alternator | 60 A |
| Cooling system | Water cooled |
| Fuel | Diesel |
Weights
| Shipping | 3,219 lb |
|---|
Hydraulic System
| Auxiliary hydraulic flow | 8.5 gal/min |
|---|---|
| Excavator/track main relief | 3,408 psi |
| Nominal output | 9.6 gal/min |
| Slew main relief | 2,422 psi |
Dimensions
| Ground Clearance | 7 in |
|---|---|
| Tail Swing Radius | 44 in |
| Width Over Tracks | 40 in |
| Transport Length | 140 in |
| Track Gauge | 30 in |
| Undercarriage Overall Length | 62 in |
| Cab width | 39 in |
| Overall width of superstructure | 40 in |
| Cab length | 292.5 gal |
Undercarriage
| Number of bottom rollers per side | 3 |
|---|---|
| Tractive Effort | 29 lb |
Fluid Capacities
| Fuel Tank | 5.5 gal |
|---|---|
| Hydraulic system | 7.4 gal |
| Engine Oil | 0.7 gal |
| Hydraulic Tank | 4.0 gal |
| Engine coolant | 1.2 gal |
Boom/Stick Excavator Option 1
| Max Digging Depth | 96 in |
|---|---|
| Max.Dumping Height | 103 in |
| Max Digging Height | 141 in |
| Max Digging Reach | 154 in |
| Maximum digging depth - dozer up | 90 in |
| Maximum vertical wallcut depth | 77 in |
| Maximum digging depth - dozer down | 96 in |
| Maximum height to dipper nose pivot pin | 124 in |
| Minimum front swing radius (no offset) | 59 in |
| Max Digging Reach on Ground | 151 in |
General Specifications
| Operating Weight lbs (kg) | 3,856 (1,749) Starting 2025 Model Year |
|---|---|
| Digging Depth ft (m) | 8 (2.4) Starting 2025 Model Year |
| Engine hp (kW) | 23.1 (17.2) Starting 2025 Model Year |
| Digging Reach ft. (m) | 12.8 (3.9) Starting 2025 Model Year |
Boom
| Boom swing left | 75 ° |
|---|---|
| Boom swing right | 55 ° |
| Bucket rotation | 201 ° |
| Bucket tearout | 3,507 lb |
| Dipper tearout | 1,978 lb |
| Dipper rotation | 126 ° |
| Slew speed | 8 rpm |
Blades
| Blade Width | 40 in |
|---|---|
| Blade Height | 9 in |
| Approach angle | 25 ° |
| Dig depth (below ground) | 9 in |
| Maximum height | 9 in |
Performance
| Travel speed low | 1.3 mph |
|---|---|
| Gradeability | 35.0 % |
