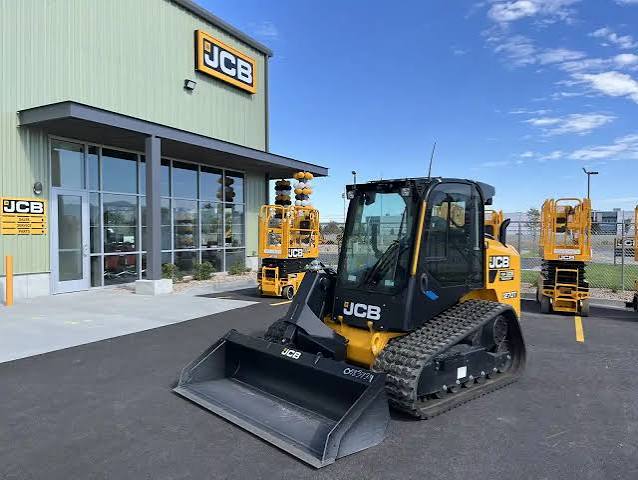

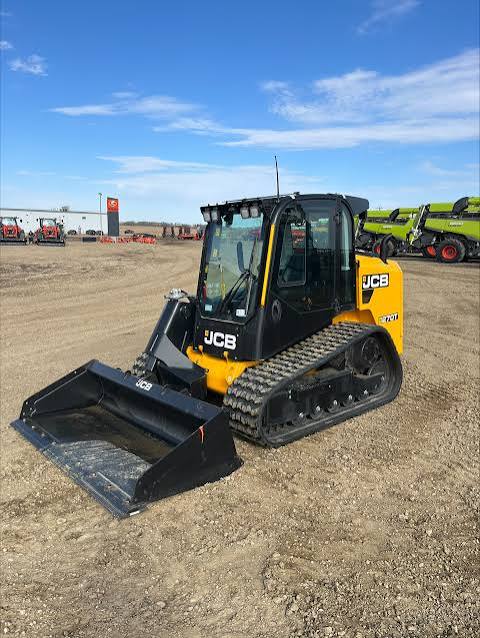

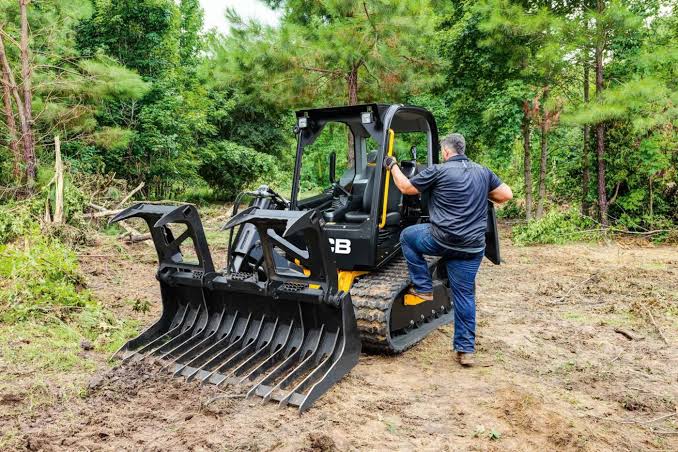

JCB
ASV
PT-70
Compact Track Loader
32 specifications
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 11,003 lb |
|---|---|
| Fuel Capacity | 27.3 gal |
| Hydraulic System Fluid Capacity | 14.6 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Engine Oil Capacity | 4.0 gal |
Engine
| Engine Model | EcoMAX TCAE-55 |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 73.8 hp |
| Aspiration | Liquid |
| Torque Measured @ | 1,200 rpm |
| Alternator | 95 A |
| Emissions Certification | EPA-T4F (EU St3B) |
| Cooling system | Liquid |
| Battery | 12 V |
| Peak Torque | 295 lb-ft |
| Fuel | Diesel |
| Engine oil service interval hours | 500 |
Dimensions
| Ground Clearance | 9 in |
|---|---|
| Height - Top of Cab | 83 in |
| Wheelbase | 83 in |
| Width Over Tracks | 76 in |
| Length with Bucket | 150 in |
| Dump Height | 90 in |
| Dump angle | 42 ° |
| Angle of departure | 29 ° |
| Loadover height | 114 in |
| Reach @ ground level | 44 in |
| Dig Depth | 394 in |
| Pin height | 126 in |
| Max. reach @ full height | 52 in |
| Rollback @ ground | 30 ° |
Transmission
| Travelling speed | 7.7 / 12.5 |
|---|
General Specifications
| Operating Width IN. (CM) | 75 (190) Starting 2024 Model Year |
|---|---|
| Engine Power HP (KW) | 74 (55) Starting 2024 Model Year |
| Rated Operating Capacity LBS (KG) 50% | 2,723 (1,235) Starting 2020 Model Year |
| Rated Operating Capacity LBS. (KG) | 2,723 (1,235) Starting 2025 Model Year |
Loader
| Bucket Capacity | 0.60 yd³ |
|---|---|
| Tipping Angle | 7,990 ° |
| Operating Load | 11,003 lb |
| Breakout Force | — |
| Bucket Width | 75 in |
