434E
Backhoe Loader
37 specifications
1 / 5

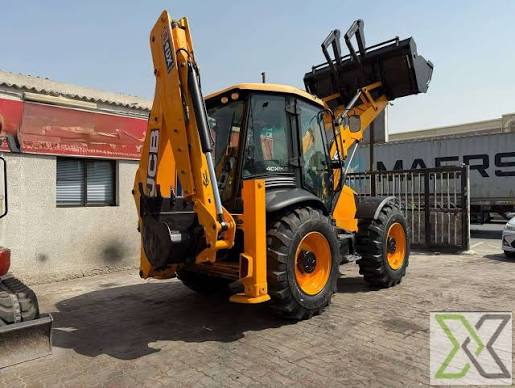

Image 1 of 5
Specifications
38 data points
Operating Specifications
| Fuel Capacity | 22.0 gal |
|---|---|
| Hydraulic System Fluid Capacity | 22.0 gal |
| Cooling System Fluid Capacity | 4.8 gal |
| Tire Size Front - 2wd / 4wd | 12.5x18x10 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 4.0 gal |
| Turning Radius | 270 in |
| Transmission Fluid Capacity | 4.5 gal |
| Max Weight | 14,010 lb |
| Rear Axle Fluid Capacity | 2.4 gal |
| Front Axle Fluid Capacity | 2.4 gal |
Engine
| Displacement | 269 in³ |
|---|---|
| Number of Cylinders | 4 |
| Aspiration | Naturally aspirated |
| Torque Measured @ | 1,200 rpm |
| Net Max Torque | 300 lb-ft |
Hydraulic System
| Pump Flow Capacity | 20.9 gal/min |
|---|
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Wheelbase | 79 in |
| Transport Width | 73 in |
| Height to Top of Suspended Cab | 104 in |
Transmission
| Max Speed | 21.3 mph |
|---|---|
| Max Speed - Reverse | 21.3 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | syncroshuttle |
Tires & Wheels
| Rear Tires Size | 12.5x18x10 |
|---|
Backhoe
| Reach From Swivel | 157 in |
|---|---|
| Dig Depth - Extended | 146 in |
| Load Height - Extended | 128 in |
| Bucket Dig Force | 9,259 lb |
| Reach From Swivel - Extended | 181 in |
| Reach at Load Height - Extended | 76 in |
| Bucket Dig Force - Extended | 9,259 lb |
Loader
| Dig Depth | 4 in |
|---|---|
| SAE - Net | 72.3 hp |
| Breakout Force | — |
Travel Speed
| 4th Gear Fwd | 20.6 mph |
|---|
