JCB

2CX L

Backhoe Loader

Bucket Capacity
0.30 yd³
Max Speed
21.3 mph
Gross Power
55.3 hp
Net Power
51.5 hp
All backhoe loaders

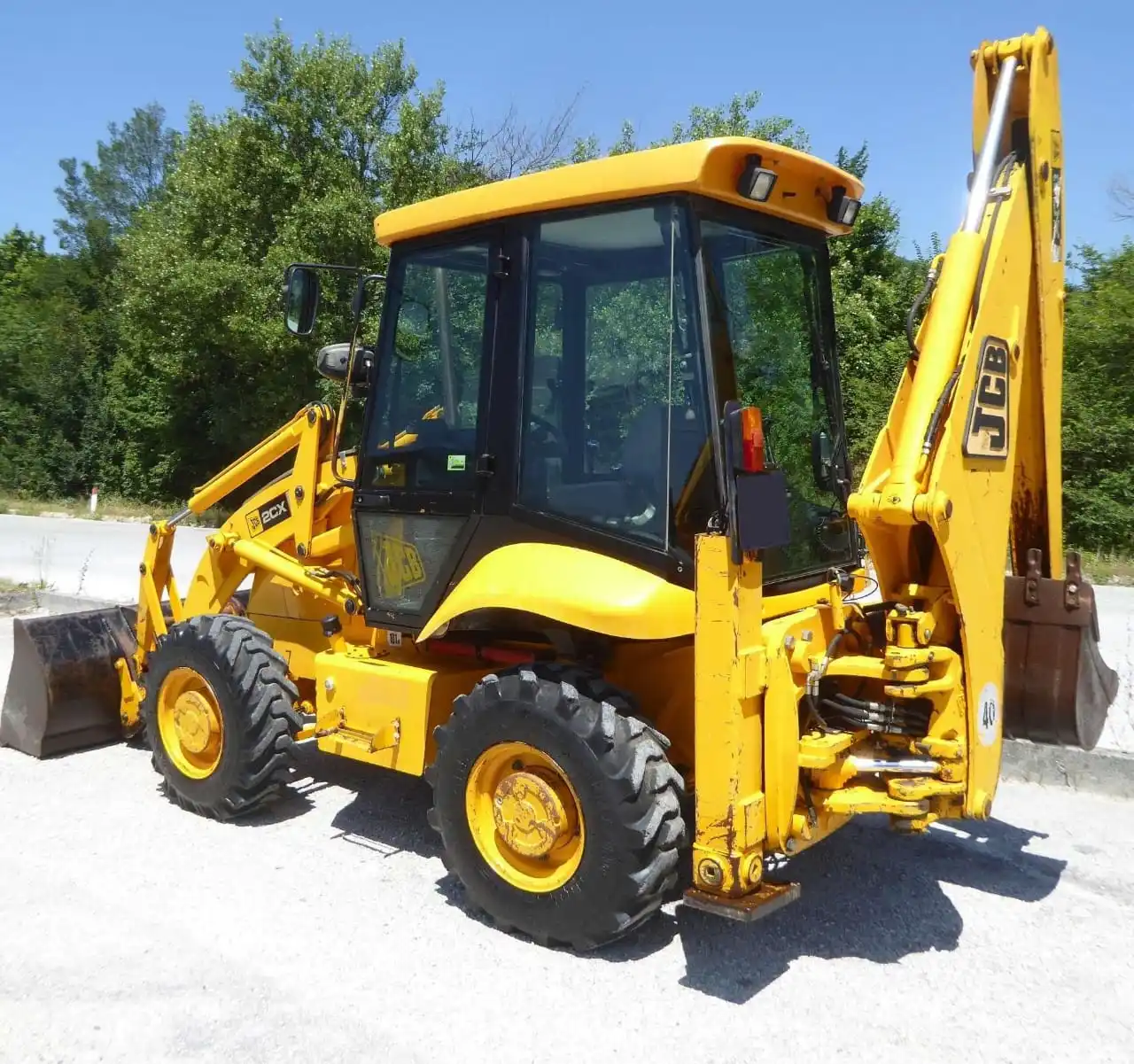

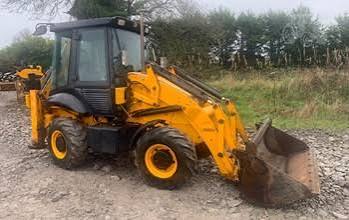

JCB 2CX L Backhoe Loader
1 / 5
Image 1 of 5
Image: alibaba.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity22.0 gal
Hydraulic System Fluid Capacity22.0 gal
Cooling System Fluid Capacity4.8 gal
Tire Size Front - 2wd / 4wd12.5x18x10
Operating Voltage12 V
Oil System Fluid Capacity4.0 gal
Alternator Supplied Amperage50 A
Transmission Fluid Capacity4.5 gal
Max Weight14,010 lb
Rear Axle Fluid Capacity2.4 gal
Front Axle Fluid Capacity2.4 gal

Engine

Engine specifications
Displacement269 in³
Power Measured @2,200 rpm
Gross Power55.3 hp
Net Power51.5 hp
AspirationNaturally aspirated
Torque Measured @1,200 rpm
Net Max Torque300 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity20.9 gal/min
Relief Valve Pressure3,336 psi
Pump Type2CXS

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase79 in
Transport Width73 in
Transport Length203 in
Height to Top of Suspended Cab104 in

Transmission

Transmission specifications
Max Speed21.3 mph
Max Speed - Reverse21.3 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission Typesyncroshuttle

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size12.5x18x10

Backhoe

Backhoe specifications
Dig Depth120 in
Reach From Swivel157 in
Dig Depth - Extended146 in
Load Height - Extended128 in
Bucket Dig Force9,259 lb
Reach From Swivel - Extended181 in
Reach at Load Height - Extended76 in
Bucket Dig Force - Extended9,259 lb

Loader

Loader specifications
Bucket Capacity0.30 yd³
Clearance at Max Dump Height98 in
Bucket Breakout Force7,921 lb
Bucket Width47 in
Reach at Max Dump Height29 in
Dig Depth4 in
