JCB

320T

Compact Track Loader

Operating Weight
11,570 lb
Displacement
269 in³
Gross Power
74.0 hp
All compact track loaders

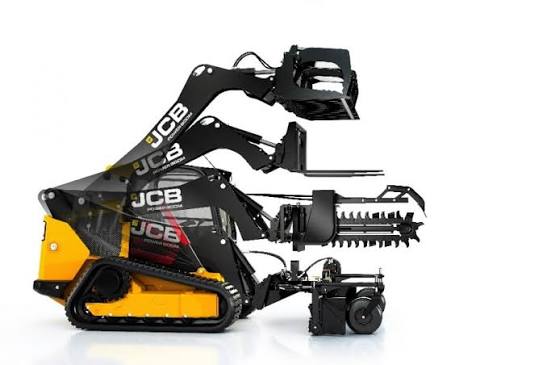

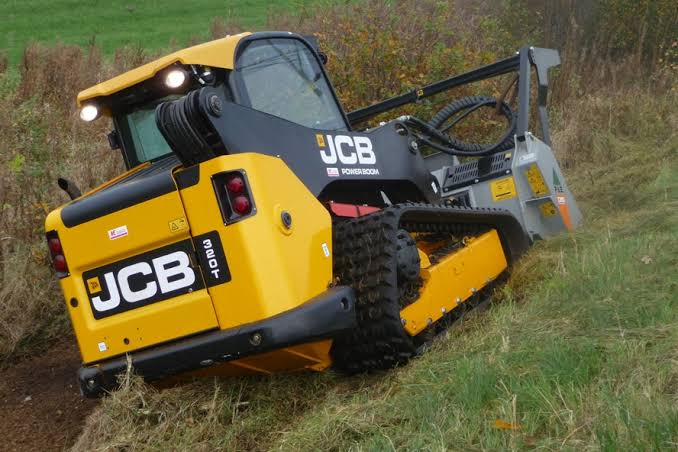

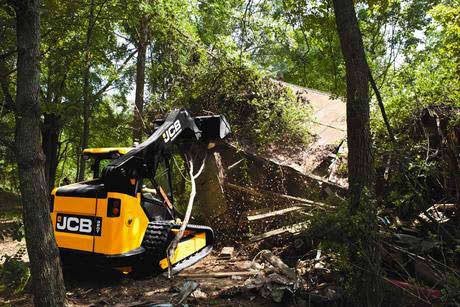

JCB 320T Compact Track Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,570 lb
Max Speed - low range5.7 mph
Fuel Capacity27.3 gal
Hydraulic System Fluid Capacity14.6 gal
Cooling System Fluid Capacity5.9 gal
Operating Voltage12 V
Engine Oil Capacity4.0 gal

Engine

Engine specifications
Engine ModelEcoMAX TCAE-55
Displacement269 in³
Power Measured @2,400 rpm
Gross Power74.0 hp
AspirationTurbo
Torque Measured @1,200 rpm
Alternator95 A
Emissions CertificationEPA-T4F (EU St3B)
Cooling systemLiquid
Battery12 V
Peak Torque295 lb-ft
FuelDiesel
Engine oil service interval hours500

Hydraulic System

Hydraulic System specifications
Pump Flow23.0 gal/min
Relief Valve Pressure3,335 psi

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab83 in
Wheelbase83 in
Reach at Max Lift and Dump36 in
Width Over Tracks76 in
Length with Bucket150 in
Clearance at Max Lift and Dump95 in
Dump Height90 in
Dump angle42 °
Angle of departure29 °
Loadover height114 in
Reach @ ground level44 in
Pin height126 in
Dig Depth394 in
Max. reach @ full height52 in
Rollback @ ground30 °

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Width of Track18 in

Loader

Loader specifications
Bucket Capacity0.60 yd³
Tipping Angle9,145 °
Operating Load11,570 lb
Breakout Force—
Bucket Width75 in
