JCB

3CX-2

Backhoe Loader

Bucket Capacity
1.40 yd³
Max Speed
22.5 mph
Gross Power
82.7 hp
All backhoe loaders

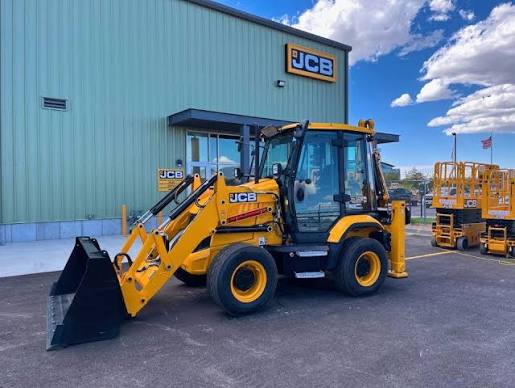

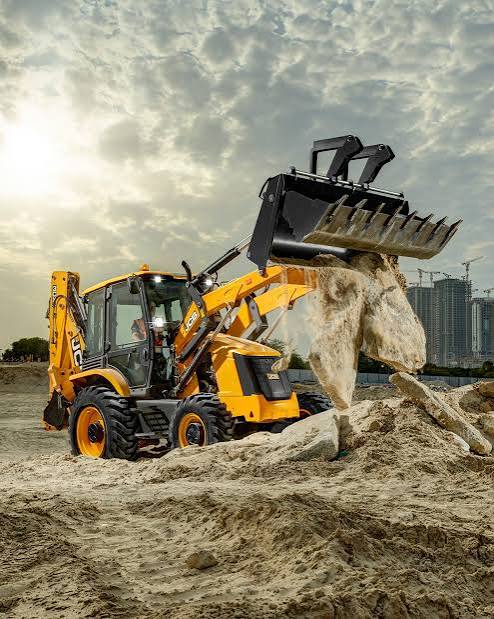

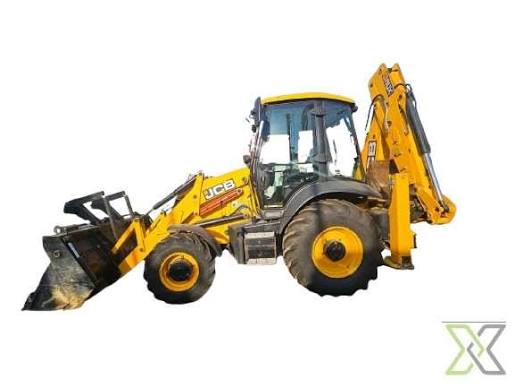

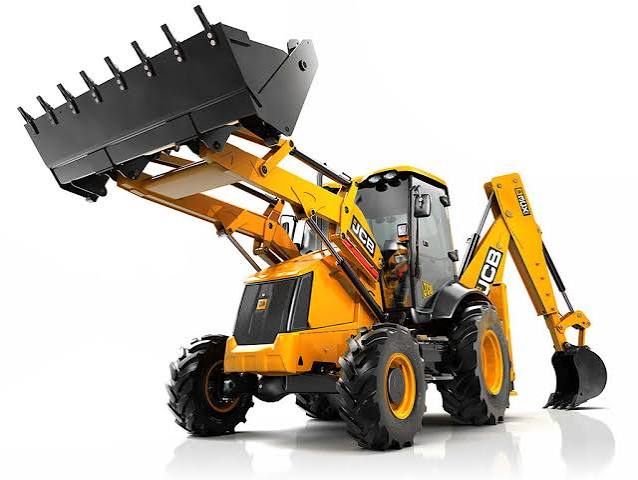

JCB 3CX-2 Backhoe Loader
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity42.3 gal

Engine

Engine specifications
Engine Model444
Gross Power82.7 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity32.8 gal/min
Relief Valve Pressure3,641 psi
Pump Typetwin gear

Dimensions

Dimensions specifications
Transport Width94 in
Transport Length222 in

Transmission

Transmission specifications
Max Speed22.5 mph
Max Speed - Reverse22.5 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission TypeJCB 2WD

Backhoe

Backhoe specifications
Dig Depth168 in
Reach From Swivel16 in
Bucket Dig Force14,218 lb

Loader

Loader specifications
Bucket Capacity1.40 yd³
Lift Capacity3,492 lb
Clearance at Max Dump Height108 in
Bucket Width93 in
