JCB

3CX-4

Backhoe Loader

Bucket Capacity
1.40 yd³
Max Speed
22.5 mph
Gross Power
82.7 hp
All backhoe loaders

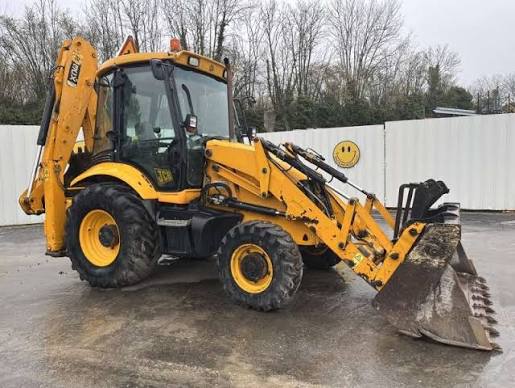

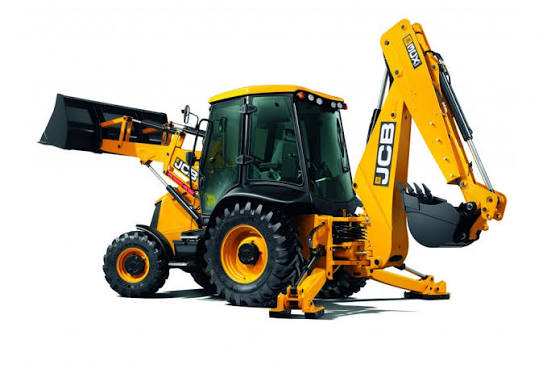

JCB 3CX-4 Backhoe Loader
1 / 5
Image 1 of 5
Image: norlift.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 4wd17,791 lb
Fuel Capacity42.3 gal
Max Weight16,248 lb

Engine

Engine specifications
Engine Model444
Gross Power82.7 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity36.0 gal/min
Relief Valve Pressure3,641 psi
Pump Typetwin gear

Dimensions

Dimensions specifications
Transport Width94 in
Transport Length222 in

Transmission

Transmission specifications
Max Speed22.5 mph
Max Speed - Reverse22.5 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission TypeJCB 4WD

Backhoe

Backhoe specifications
Dig Depth168 in
Reach From Swivel257 in
Bucket Dig Force14,218 lb

Loader

Loader specifications
Bucket Capacity1.40 yd³
Lift Capacity3,492 lb
Clearance at Max Dump Height108 in
Bucket Width93 in
