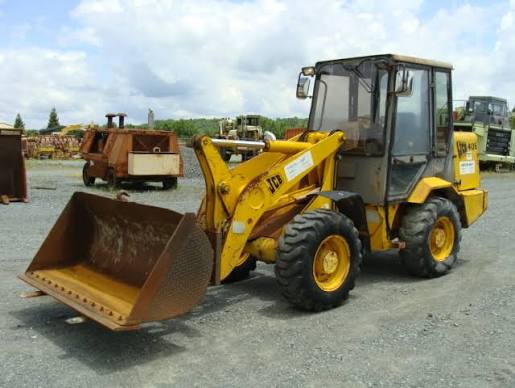

JCB
Schaffer
3150
Wheel Loader
23 specifications
1 / 5
Image 1 of 5
Specifications
47 data points
Operating Specifications
| Tire Size | 12.5/80 R18 SGL |
|---|---|
| Hydraulic System Fluid Capacity | 18.5 gal |
| Operating Voltage | 12 V |
| Turning Radius | 108 in |
| Engine Oil Fluid Capacity | 3.0 gal |
| Rear Axle Oscillation | 10 ° |
| Alternator Supplied Amperage | 80 A |
| Rated Bucket Capacity | 0.99 yd³ |
| Engine Oil Capacity | 3.1 gal |
| Static Tipping Load - Bucket | 9,458 lb |
| Front Diff Fluid Capacity | 1.0 gal |
| Rear Diff Fluid Capacity | 1.0 gal |
Engine
| Net Power | 56.0 hp |
|---|---|
| Number of Cylinders | 4 |
| Aspiration | Naturally Aspirated |
| Max Torque | 140 lb-ft |
| Make | Duetz |
| Engine Type | 4 stroke Mechanical |
| Emissions level | Stage 3A |
Weights
| Operating Weight | 10,870 lb |
|---|
Hydraulic System
| Raise Time | 4.9 s |
|---|---|
| Lower Time | 3.1 s |
| Dump Time | 3.5 s |
| Relief Valve Setting | 3,335 psi |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 100 in |
| Wheelbase | 83 in |
| Reach at Max Lift and Dump | 31 in |
| Length with Bucket on Ground | 203 in |
| Hinge Pin - Max Height | 124 in |
| Reach at Max Height and Dump | 31 in |
| Length w/ Bucket on Ground | 203 in |
| Dump Clearance at Max Lift | 98 in |
| Max Lift Height | 119 in |
| Fork Tine Length | 48 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Dump Clearance at Max Raise | 98 in |
|---|---|
| Bucket Width | 76 in |
Electrical System
| Voltage | 12 V |
|---|---|
| Alternator | — |
| Battery capacity | 100 Ah |
Axles
| Axle oil front | 1.2 gal |
|---|---|
| Axle oil rear | 1.6 gal |
