JCB

411 ZX

Wheel Loader

Operating Weight
11,574 lb
Bucket Capacity - heaped
1.20 yd³
Gross Power
75.0 hp
Net Power
67.0 hp
All wheel loaders

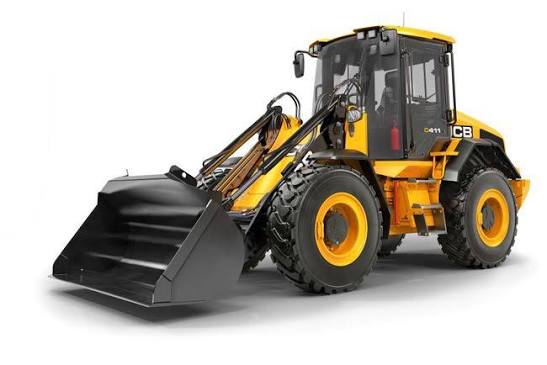

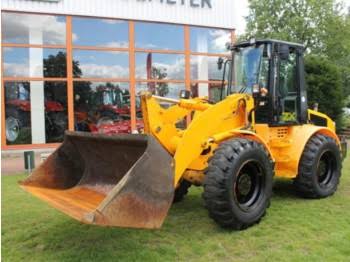

JCB 411 ZX Wheel Loader
1 / 5
Image 1 of 5
Image: williamsjcb.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,574 lb
Fuel Capacity26.5 gal
Hydraulic System Fluid Capacity22.5 gal
Operating Voltage12 V
Turning Radius143 in
Rear Axle Oscillation9 °
Alternator Supplied Amperage75 A
Cooling System Fluid Capacity4.1 gal
Transmission Fluid Capacity22.5 gal
Engine Oil Capacity2.5 gal
Static Tipping Load - Bucket6,810 lb
Front Diff Fluid Capacity2.6 gal
Rear Diff Fluid Capacity2.8 gal
Static Tipping Load - Forks9,193 lb

Engine

Engine specifications
Engine Model1104C-44
Displacement269 in³
Power Measured @2,000 rpm
Gross Power75.0 hp
Net Power67.0 hp
AspirationNatural aspirated
Torque Measured @1,400 rpm
Max Torque223 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.5 gal/min
Raise Time5.0 s
Lower Time3.2 s
Dump Time1.0 s
Relief Valve Setting3,191 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab106 in
Wheelbase79 in
Width Over Tires76 in
Hinge Pin - Max Height125 in
Dump Clearance at Max Lift100 in
Reach at Max Height and Dump25 in
Length w/ Bucket on Ground200 in
Max Lift Height120 in
Fork Tine Length48 in

Transmission

Transmission specifications
Max Speed - Forward12.5 mph
Max Speed - Reverse12.5 mph
Transmission TypeHydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Bucket Capacity - heaped1.20 yd³
Bucket Capacity - struck0.99 yd³
