JCB

416BHT

Wheel Loader

Operating Weight
19,357 lb
Bucket Capacity - heaped
1.90 yd³
Gross Power
114.0 hp
Net Power
108.0 hp
All wheel loaders

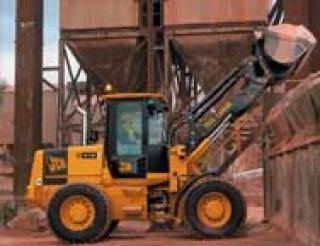

JCB 416BHT Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight19,357 lb
Fuel Capacity37.0 gal
Tire Size17.5x25x12SGL
Hydraulic System Fluid Capacity33.1 gal
Static Tipping Weight13,995 lb
Operating Voltage12 V
Turning Radius210 in
Engine Oil Fluid Capacity2.7 gal
Rear Axle Oscillation25 °
Alternator Supplied Amperage72 A
Front Axle/Diff Fluid Capacity6.1 gal
Rear Axle/Diff Fluid Capacity6.1 gal
Cooling System Fluid Capacity5.7 gal
Transmission Fluid Capacity5.1 gal

Engine

Engine specifications
Engine Model1004-40TW
Displacement244 in³
Power Measured @2,200 rpm
Gross Power114.0 hp
Net Power108.0 hp
Number of Cylinders4
Aspirationturbocharged
Torque Measured @1,400 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity41.3 gal/min
Raise Time4.6 s
Lower Time3.0 s
Dump Time1.4 s
Relief Valve Setting3,190 psi
Pump Typepiston pump variable displacement load sensing system

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab120 in
Wheelbase110 in
Width Over Tires93 in
Reach at Max Lift and Dump37 in
Length with Bucket on Ground239 in
Hinge Pin - Max Height144 in

Transmission

Transmission specifications
Max Speed - Forward23.7 mph
Max Speed - Reverse15.6 mph
Transmission Type4 wheel drive semi automatic full powershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped1.90 yd³
Bucket Capacity - struck1.60 yd³
Dump Clearance at Max Raise108 in
Breakout Force22,571 lb
Bucket Width95 in
