JCB

416S High Lift

Wheel Loader

Operating Weight
22,267 lb
Bucket Capacity - heaped
1.90 yd³
Gross Power
152.0 hp
Net Power
142.0 hp
All wheel loaders

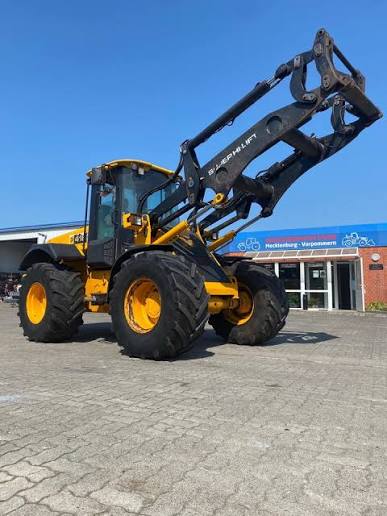

JCB 416S High Lift Wheel Loader
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,267 lb
Fuel Capacity37.0 gal
Tire Size19.5LR24 XM27
Hydraulic System Fluid Capacity34.4 gal
Operating Voltage24 V
Turning Radius214 in
Alternator Supplied Amperage70 A
Cooling System Fluid Capacity5.7 gal
Transmission Fluid Capacity7.3 gal
Engine Oil Capacity3.7 gal
Static Tipping Load - Bucket9,919 lb
Front Diff Fluid Capacity6.1 gal
Rear Diff Fluid Capacity6.1 gal
Static Tipping Load - Forks7,807 lb

Engine

Engine specifications
Engine ModelBTAA5.9C
Displacement360 in³
Power Measured @2,200 rpm
Gross Power152.0 hp
Net Power142.0 hp
Aspirationturbo charged
Torque Measured @1,600 rpm
Max Torque455 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity586.4 gal/min
Raise Time4.6 s
Lower Time3.0 s
Dump Time1.4 s
Relief Valve Setting3,335 psi
Pump Typevariable displacement piston pump

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab118 in
Wheelbase110 in
Width Over Tires97 in
Hinge Pin - Max Height222 in
Length w/ Bucket on Ground288 in
Dump Clearance at Max Lift135 in
Reach at Max Height and Dump48 in
Max Lift Height169 in
Fork Tine Length49 in

Transmission

Transmission specifications
Max Speed - Forward23.7 mph
Max Speed - Reverse16.7 mph
Transmission Typesmooth shift powershift
Number of Forward Gears6
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped1.90 yd³
Bucket Capacity - struck1.60 yd³
Breakout Force22,796 lb
