JCB

417 HT HL

Wheel Loader

Operating Weight
21,533 lb
Bucket Capacity - heaped
1.90 yd³
Gross Power
125.0 hp
All wheel loaders

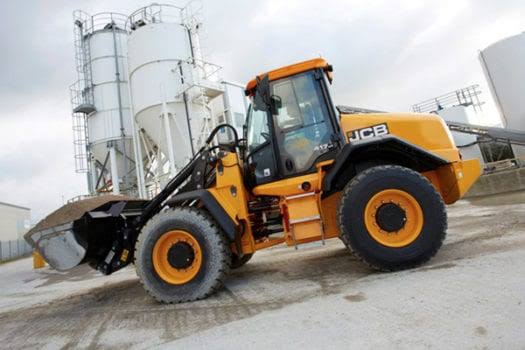

JCB 417 HT HL Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight21,533 lb
Fuel Capacity30.7 gal
Hydraulic System Fluid Capacity41.0 gal
Operating Voltage24 V
Turning Radius221 in
Rear Axle Oscillation11 °
Alternator Supplied Amperage100 A
DEF tank capacity5.3 gal
Articulation Angle40 °
Auxiliary fuel tank29.4 gal

Engine

Engine specifications
Engine ModelJCB EcoMAX T4F
Displacement269 in³
Power Measured @2,200 rpm
Gross Power125.0 hp
Number of Cylinders4
AspirationTurbo charged
Torque Measured @1,500 rpm
Stroke5 in
Bore4 in
Engine Type4 stroke direct injection

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity41.3 gal/min
Raise Time4.9 s
Lower Time3.3 s
Dump Time2.1 s
Relief Valve Setting3,190 psi
Pump TypeVariable placement piston pump
Total cycle10.3 s

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab122 in
Wheelbase110 in
Width Over Tires93 in
Reach at Max Lift and Dump40 in
Length with Bucket on Ground256 in
Hinge Pin - Max Height156 in

Transmission

Transmission specifications
Max Speed - Forward31.1 mph
Max Speed - Reverse23.7 mph
Transmission TypeSmooth shift Powershift ZF 4WG115
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped1.90 yd³
Bucket Capacity - struck1.60 yd³
Dump Clearance at Max Raise117 in
Breakout Force15,737 lb
Bucket Width95 in
