419S HT HL

Wheel Loader

Operating Weight
23,508 lb
Bucket Capacity - heaped
2.11 yd³
Gross Power
173.0 hp
Net Power
183.0 hp
All wheel loaders

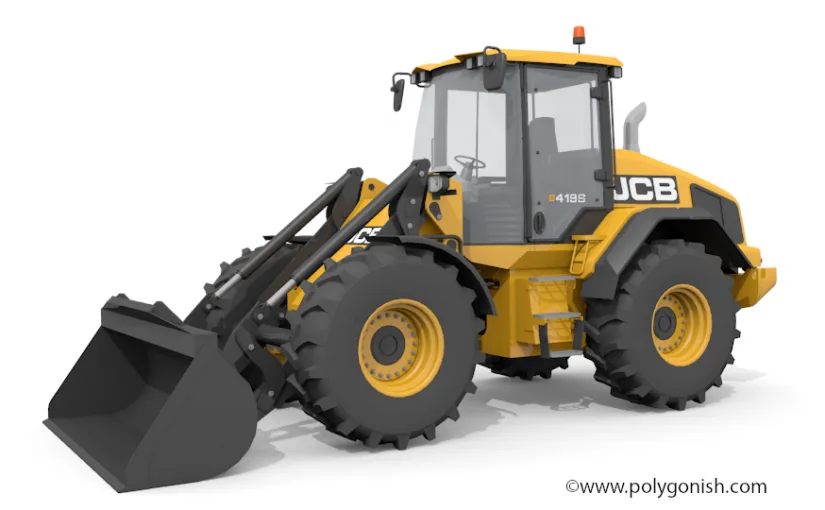

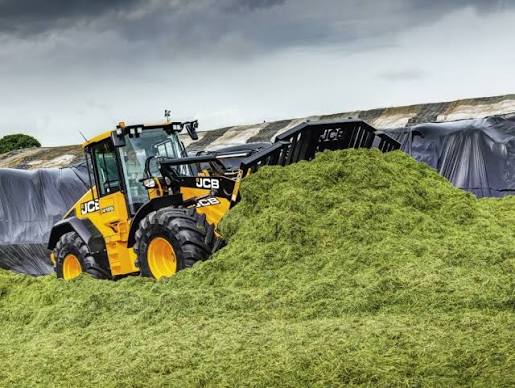

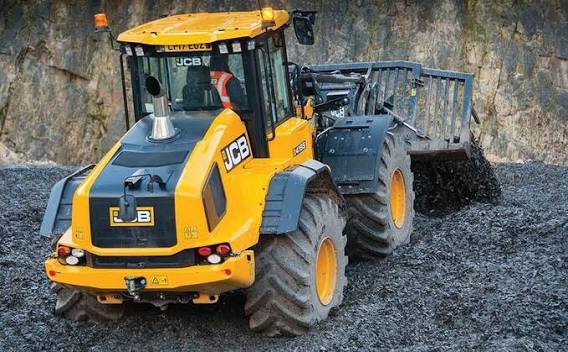

JCB 419S HT HL Wheel Loader
1 / 5
Image 1 of 5
Image: polygonish.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,508 lb
Fuel Capacity66.1 gal
Hydraulic System Fluid Capacity41.0 gal
Operating Voltage24 V
Turning Radius230 in
Rear Axle Oscillation9 °
Alternator Supplied Amperage120 A
DEF tank capacity6.3 gal
Articulation Angle38 °
Payload7,211 lb
Full Turn Tipping Load14,423 lb
Auxiliary fuel tank66.1 gal

Engine

Engine specifications
Engine ModelQSB
Displacement409 in³
Power Measured @2,100 rpm
Gross Power173.0 hp
Net Power183.0 hp
Number of Cylinders6
AspirationTurbo Charged
Torque Measured @1,500 rpm
Engine TypeCummins
Emission Tier LevelEU Stage IV US EPA Tier 4F
Air cleanerCyclonic pre-filter with engine fan scavenge system
No. of Valves4
Fan drive typeHydraulically driven cooling fan

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity47.6 gal/min
Raise Time3.9 s
Lower Time2.4 s
Dump Time1.6 s
Relief Valve Setting3,190 psi
Pump TypeVariable placement
Total cycle7.8 s

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab126 in
Wheelbase113 in
Width Over Tires106 in
Reach at Max Lift and Dump36 in
Length with Bucket on Ground271 in
Hinge Pin - Max Height155 in

Transmission

Transmission specifications
Max Speed - Forward24.9 mph
Max Speed - Reverse20.0 mph
Transmission Type6 speed non-lock up converter ZF
Number of Forward Gears6
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.11 yd³
Bucket Capacity - struck1.80 yd³
Dump Clearance at Max Raise119 in
Breakout Force18,434 lb
Bucket Width95 in
