JCB

426 AGRI

Wheel Loader

Operating Weight
32,409 lb
Bucket Capacity - heaped
2.39 yd³
Gross Power
152.0 hp
Net Power
142.0 hp
All wheel loaders

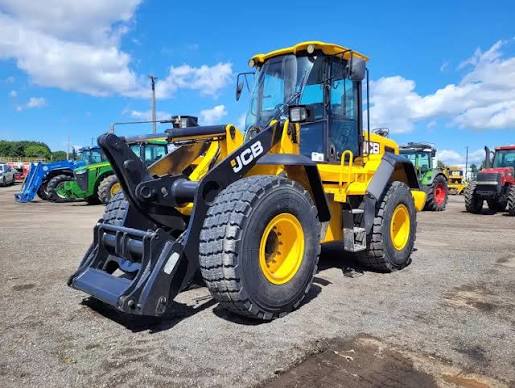

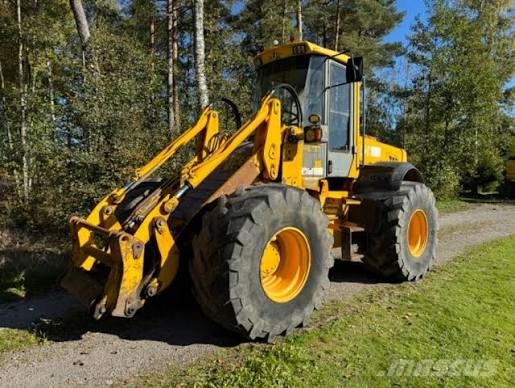

JCB 426 AGRI Wheel Loader
1 / 5
Image 1 of 5
Image: hunterjcb.com.au

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Operating Weight32,409 lb
Fuel Capacity61.0 gal
Tire Size20.5R25 XHA(L3)
Hydraulic System Fluid Capacity55.0 gal
Operating Voltage24 V
Turning Radius248 in
Rear Axle Oscillation21 °
Alternator Supplied Amperage70 A
Cooling System Fluid Capacity9.0 gal
Transmission Fluid Capacity8.5 gal
Engine Oil Capacity3.7 gal
Static Tipping Load - Bucket19,407 lb
Front Diff Fluid Capacity10.3 gal
Rear Diff Fluid Capacity10.3 gal
Static Tipping Load - Forks14,521 lb

Engine

Engine specifications
Engine ModelBTAA 5.9C
Displacement360 in³
Power Measured @2,200 rpm
Gross Power152.0 hp
Net Power142.0 hp
Number of Cylinders6
Aspirationwastegated turbocharged
Torque Measured @1,300 rpm
Max Torque467 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity69.8 gal/min
Raise Time4.4 s
Lower Time2.7 s
Dump Time1.0 s
Relief Valve Setting3,625 psi
Pump TypeTwin variable displacement piston pumps

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab132 in
Wheelbase119 in
Width Over Tires103 in
Hinge Pin - Max Height172 in
Reach at Max Height and Dump49 in
Length w/ Bucket on Ground285 in
Dump Clearance at Max Lift128 in
Max Lift Height165 in
Fork Tine Length49 in

Transmission

Transmission specifications
Max Speed - Forward23.5 mph
Max Speed - Reverse15.6 mph
Transmission TypeSmooth shift powershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.39 yd³
Bucket Capacity - struck2.11 yd³
Breakout Force31,000 lb
