JCB

426HT

Wheel Loader

Operating Weight
28,841 lb
Bucket Capacity - heaped
2.50 yd³
Gross Power
165.0 hp
Net Power
152.0 hp
All wheel loaders

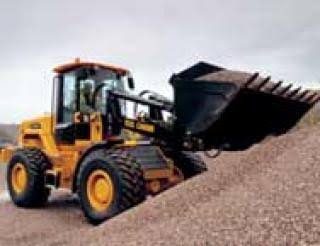

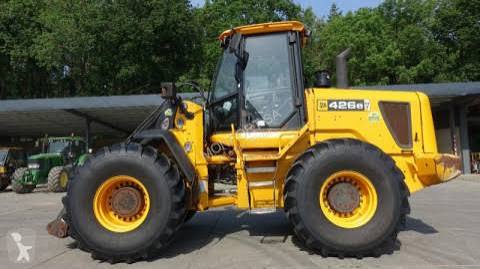

JCB 426HT Wheel Loader
1 / 5
Image 1 of 5
Image: hunterjcb.com.au

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,841 lb
Fuel Capacity61.0 gal
Tire SizeMichelin 20.5R25 XHA (L3)
Hydraulic System Fluid Capacity9.0 gal
Operating Voltage24 V
Turning Radius228 in
Rear Axle Oscillation21 °
Alternator Supplied Amperage70 A
Cooling System Fluid Capacity55.0 gal
Transmission Fluid Capacity7.0 gal
Engine Oil Capacity3.7 gal
Static Tipping Load - Bucket23,206 lb
Front Diff Fluid Capacity10.3 gal
Rear Diff Fluid Capacity9.8 gal
Static Tipping Load - Forks16,691 lb

Engine

Engine specifications
Engine ModelQB6.7
Displacement409 in³
Power Measured @2,200 rpm
Gross Power165.0 hp
Net Power152.0 hp
Number of Cylinders6
AspirationTurbocharged wastegated
Torque Measured @1,400 rpm
Max Torque540 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity69.8 gal/min
Raise Time4.4 s
Lower Time2.7 s
Dump Time1.0 s
Relief Valve Setting3,625 psi
Pump TypeTwin variable displacement piston pumps

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab132 in
Wheelbase119 in
Width Over Tires98 in
Hinge Pin - Max Height155 in
Reach at Max Height and Dump39 in
Length w/ Bucket on Ground270 in
Dump Clearance at Max Lift117 in
Max Lift Height146 in
Fork Tine Length49 in

Transmission

Transmission specifications
Max Speed - Forward23.5 mph
Max Speed - Reverse15.6 mph
Transmission TypeSmooth shift powershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.50 yd³
Bucket Capacity - struck2.20 yd³
Breakout Force31,024 lb
