Volvo

L45

Wheel Loader

Operating Weight
17,483 lb
Bucket Capacity - heaped
2.11 yd³
Gross Power
107.0 hp
Net Power
99.0 hp
All wheel loaders

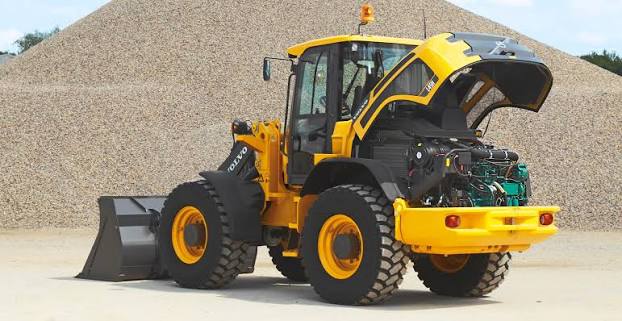

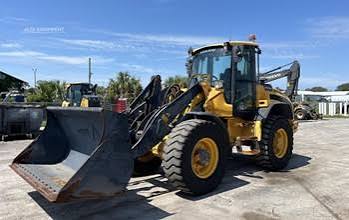

Volvo L45 Wheel Loader
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,483 lb
Fuel Capacity34.4 gal
Tire Size15.5-25
Hydraulic System Fluid Capacity29.1 gal
Static Tipping Weight12,346 lb
Operating Voltage24 V
Turning Radius192 in
Engine Oil Fluid Capacity3.2 gal
Rear Axle Oscillation20 °
Alternator Supplied Amperage55 A
Front Axle/Diff Fluid Capacity2.1 gal
Rear Axle/Diff Fluid Capacity2.7 gal

Engine

Engine specifications
Engine ModelBF4M 1013
Displacement291 in³
Power Measured @2,100 rpm
Gross Power107.0 hp
Net Power99.0 hp
Number of Cylinders4
Aspirationturbocharged
Torque Measured @1,400 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity28.1 gal/min
Raise Time6.0 s
Lower Time5.0 s
Dump Time1.5 s
Relief Valve Setting3,626 psi

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab117 in
Wheelbase97 in
Width Over Tires86 in
Reach at Max Lift and Dump35 in
Length with Bucket on Ground238 in
Hinge Pin - Max Height144 in

Transmission

Transmission specifications
Max Speed - Forward21.8 mph
Max Speed - Reverse10.0 mph
Number of Forward Gears3
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.11 yd³
Dump Clearance at Max Raise110 in
Bucket Width89 in

General Specifications

General Specifications specifications
Operating Weight lbs (kg)19,378 (8,790) — Starting 2025 Model Year
Bucket Capacity cu. yd. (cu m)1.6-2.6 (1.2-2) — Starting 2026 Model Year
Engine typeVolvo D4J — Starting 2025 Model Year
Max Dump Height ft.( m)11.3 (3.4) — Starting 2025 Model Year
OperatingWeight lbs. (kg)19,114-20,348 (8,670-9,230) — Starting 2026 Model Year
Engine Power Net hp (kW)100 (75) — Starting 2025 Model Year
