Komatsu

WA150-6

Wheel Loader

Operating Weight
17,306 lb
Bucket Capacity - heaped
2.00 yd³
Gross Power
99.0 hp
Net Power
98.0 hp
All wheel loaders

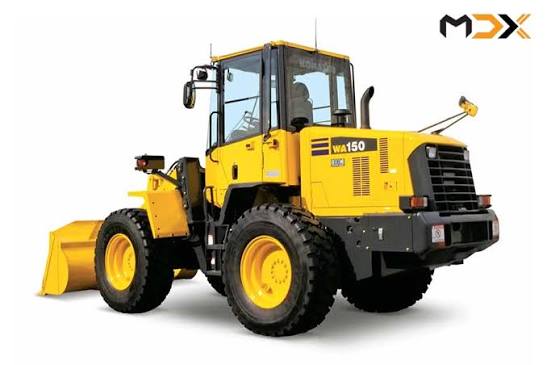

Komatsu WA150-6 Wheel Loader
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,306 lb
Fuel Capacity35.2 gal
Tire Size17.5-25
Hydraulic System Fluid Capacity12.5 gal
Static Tipping Weight14,870 lb
Operating Voltage24 V
Turning Radius212 in
Engine Oil Fluid Capacity3.1 gal
Rear Axle Oscillation16 °
Alternator Supplied Amperage60 A
Front Axle/Diff Fluid Capacity3.7 gal
Rear Axle/Diff Fluid Capacity3.9 gal
Cooling System Fluid Capacity3.9 gal
Rated Bucket Capacity1.70 – 2.20 yd³

Engine

Engine specifications
Engine ModelSAA4D95LE-5
Displacement199 in³
Power Measured @2,200 rpm
Gross Power99.0 hp
Net Power98.0 hp
Number of Cylinders4
AspirationTurbocharged and Aftercooled

Weights

Weights specifications
Operating Weight17,271 – 17,461 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity28.6 gal/min
Raise Time6.0 s
Lower Time3.6 s
Dump Time1.1 s
Relief Valve Setting2,700 psi

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab120 in
Wheelbase103 in
Width Over Tires86 in
Reach at Max Lift and Dump39 in
Length with Bucket on Ground250 in
Hinge Pin - Max Height138 in

Transmission

Transmission specifications
Max Speed - Forward23.7 mph
Max Speed - Reverse23.7 mph
Transmission TypeHydrostatic
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped2.00 yd³
Bucket Capacity - struck1.70 yd³
Dump Clearance at Max Raise108 in
Bucket Width95 in
