Mecalac

AX 700

Wheel Loader

Operating Weight
10,384 lb
Bucket Capacity - heaped
1.60 yd³
Net Power
68.0 hp
All wheel loaders

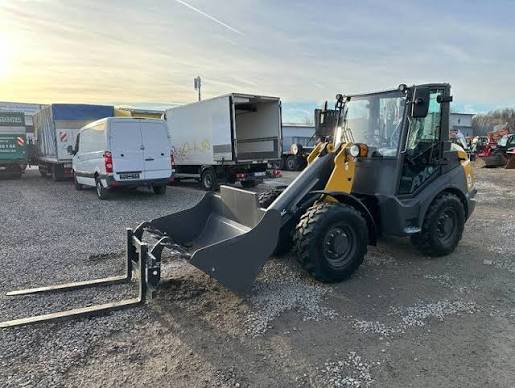

Mecalac AX 700 Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,384 lb
Fuel Capacity23.0 gal
Tire Size12.5-18
Hydraulic System Fluid Capacity15.9 gal
Operating Voltage12 V
Turning Radius146 in
Rear Axle Oscillation11 °
Alternator Supplied Amperage95 A
Front Axle/Diff Fluid Capacity1.6 gal
Rear Axle/Diff Fluid Capacity1.8 gal
Steering Angle40 °

Engine

Engine specifications
Engine ModelDeutz TD 2.9 L4
Power Measured @2,300 rpm
Net Power68.0 hp
AspirationLow-noise water-cooled turbo diesel engine
Torque Measured @1,800 rpm
Battery100 Ah

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity16.4 gal/min
Pump TypeSingle circuit hydraulics with central gear pump

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab98 in
Wheelbase80 in
Width Over Tires64 in
Reach at Max Lift and Dump31 in
Length with Bucket on Ground209 in
Hinge Pin - Max Height130 in

Transmission

Transmission specifications
Max Speed - Forward12.5 mph

Bucket

Bucket specifications
Bucket Capacity - heaped1.60 yd³
Breakout Force787 lb
Tipping load Standard bucket7,055 lb
Dumping angle, top45 °
Lifting force3500 newton
Payload on forks, max. turned, frontal4,630 lb
Thrust force3800 newton
