JCB

426HTM

Wheel Loader

Operating Weight
31,328 lb
Bucket Capacity - heaped
2.39 yd³
Gross Power
152.0 hp
Net Power
150.0 hp
All wheel loaders

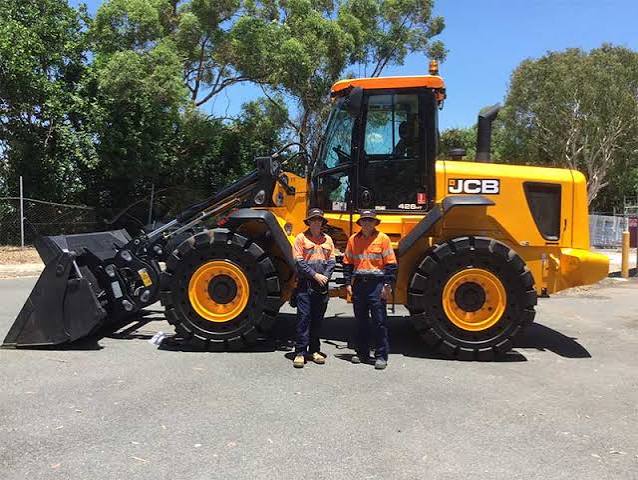

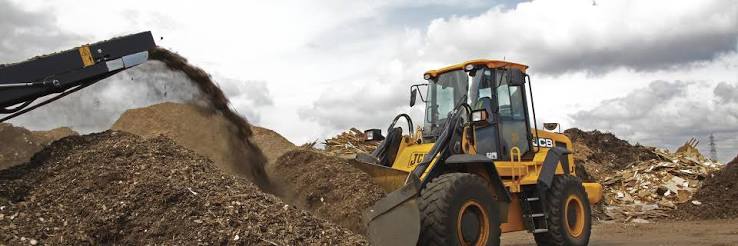

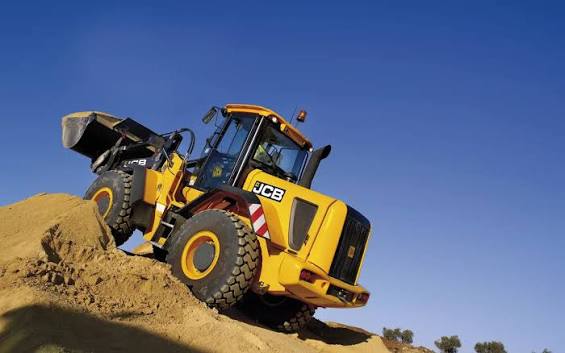

JCB 426HTM Wheel Loader
1 / 5
Image 1 of 5
Image: hunterjcb.com.au

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Operating Weight31,328 lb
Hydraulic System Fluid Capacity55.5 gal
Static Tipping Weight19,158 lb
Operating Voltage24 V
Turning Radius231 in
Engine Oil Fluid Capacity3.7 gal
Rear Axle Oscillation25 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity10.4 gal
Rear Axle/Diff Fluid Capacity9.8 gal
Cooling System Fluid Capacity9.3 gal
Transmission Fluid Capacity8.0 gal
Engine Oil Capacity3.7 gal
Front Diff Fluid Capacity10.4 gal
Rear Diff Fluid Capacity9.8 gal
Static Tipping Load - Forks14,771 lb

Engine

Engine specifications
Engine ModelBTAA5.9C
Displacement360 in³
Gross Power152.0 hp
Net Power150.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,600 rpm
Max Torque336 lb-ft

Hydraulic System

Hydraulic System specifications
Raise Time4.4 s
Lower Time2.7 s
Dump Time1.0 s
Relief Valve Setting3,625 psi

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab131 in
Wheelbase119 in
Width Over Tires101 in
Reach at Max Lift and Dump43 in
Length with Bucket on Ground267 in
Hinge Pin - Max Height143 in
Reach at Max Height and Dump43 in
Dump Clearance at Max Lift111 in
Max Lift Height146 in
Fork Tine Length49 in

Transmission

Transmission specifications
Max Speed - Forward24.0 mph
Max Speed - Reverse15.1 mph
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.39 yd³
Bucket Capacity - struck2.11 yd³
Dump Clearance at Max Raise111 in
Breakout Force31,024 lb
Bucket Width101 in

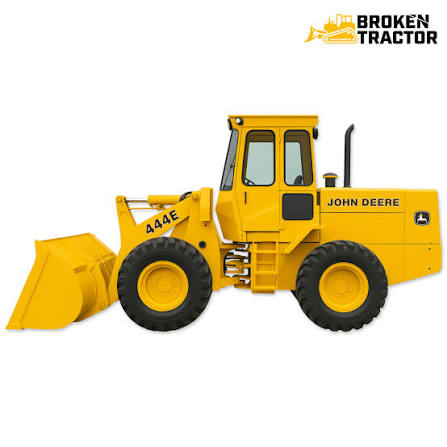

Comparable machines
