JCB

436HT High Lift

Wheel Loader

Operating Weight
33,892 lb
Bucket Capacity - heaped
3.10 yd³
Gross Power
177.0 hp
Net Power
165.0 hp
All wheel loaders

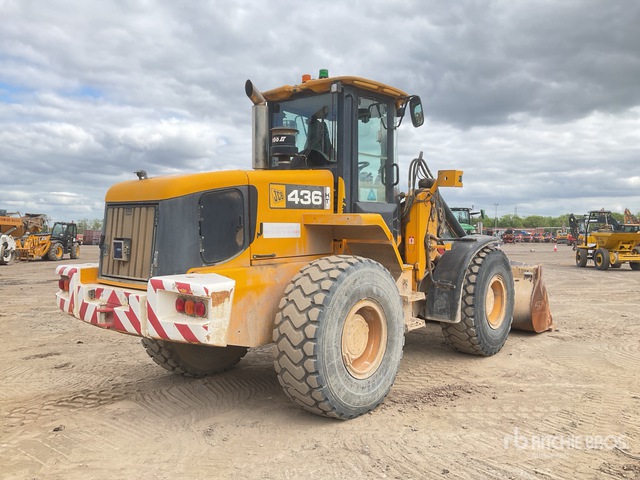

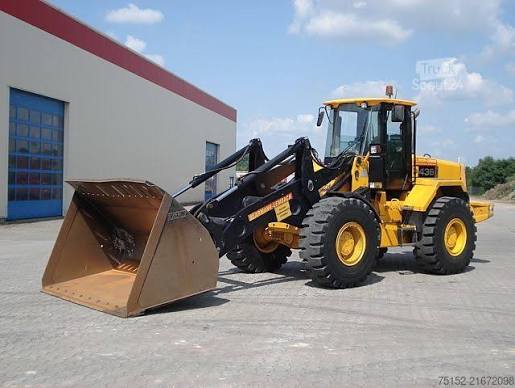

JCB 436HT High Lift Wheel Loader
1 / 5
Image 1 of 5
Image: rbauction.com

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Operating Weight33,892 lb
Fuel Capacity61.0 gal
Tire Size20.5R25 XHA (L3)
Hydraulic System Fluid Capacity55.0 gal
Operating Voltage24 V
Turning Radius261 in
Rear Axle Oscillation21 °
Alternator Supplied Amperage70 A
Cooling System Fluid Capacity9.0 gal
Transmission Fluid Capacity8.5 gal
Engine Oil Capacity3.7 gal
Static Tipping Load - Bucket20,426 lb
Front Diff Fluid Capacity10.3 gal
Rear Diff Fluid Capacity10.3 gal
Static Tipping Load - Forks15,147 lb

Engine

Engine specifications
Engine ModelBTAA 5.9C
Displacement360 in³
Power Measured @2,200 rpm
Gross Power177.0 hp
Net Power165.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,300 rpm
Max Torque580 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity69.8 gal/min
Raise Time5.9 s
Lower Time3.4 s
Dump Time1.0 s
Relief Valve Setting3,625 psi
Pump TypeTwin variable displacement piston pumps

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab132 in
Wheelbase119 in
Width Over Tires103 in
Hinge Pin - Max Height183 in
Reach at Max Height and Dump42 in
Length w/ Bucket on Ground287 in
Dump Clearance at Max Lift144 in
Max Lift Height178 in
Fork Tine Length49 in

Transmission

Transmission specifications
Max Speed - Forward23.5 mph
Max Speed - Reverse16.8 mph
Transmission TypeSmooth shift powershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped3.10 yd³
Bucket Capacity - struck2.69 yd³
Breakout Force33,047 lb
