JCB

436ZX

Wheel Loader

All wheel loaders

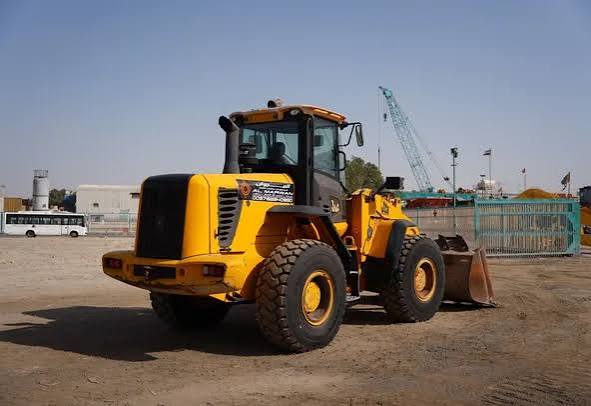

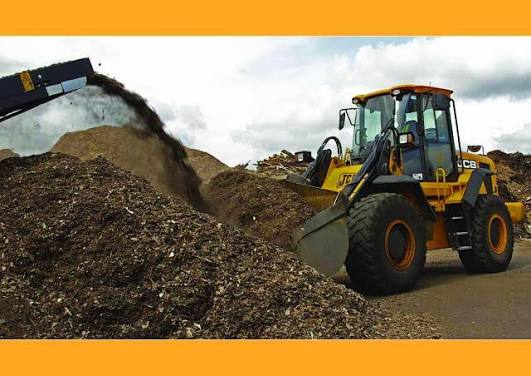

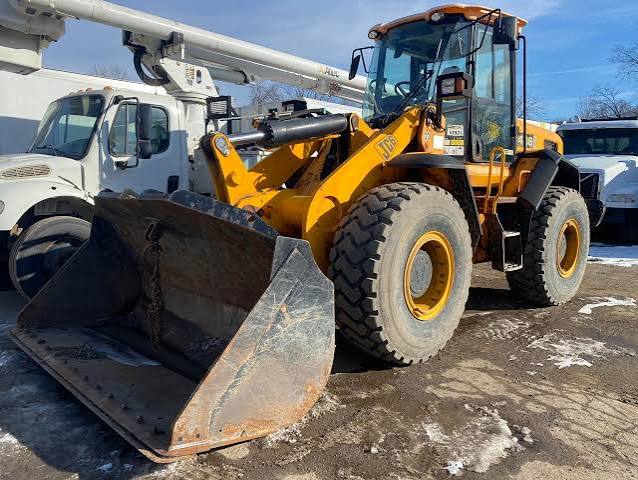

JCB 436ZX Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Static Tipping Weight22,161 lb
Operating Voltage24 V
Turning Radius233 in
Engine Oil Fluid Capacity3.7 gal
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity10.4 gal
Rear Axle/Diff Fluid Capacity10.4 gal
Engine Oil Capacity3.7 gal
Static Tipping Load - Bucket25,880 lb
Front Diff Fluid Capacity10.3 gal
Rear Diff Fluid Capacity9.8 gal
Static Tipping Load - Forks18,274 lb

Engine

Engine specifications
Power Measured @2,200 rpm
Number of Cylinders6
Max Torque590 lb-ft

Hydraulic System

Hydraulic System specifications
Raise Time5.9 s
Lower Time3.4 s
Dump Time1.0 s
Relief Valve Setting3,625 psi
Pump TypeTwin variable displacement piston pumps

Dimensions

Dimensions specifications
Ground Clearance19 in
Wheelbase119 in
Width Over Tires103 in
Reach at Max Lift and Dump50 in
Length with Bucket on Ground283 in
Hinge Pin - Max Height158 in
Length w/ Bucket on Ground283 in
Reach at Max Height and Dump50 in
Dump Clearance at Max Lift113 in
Max Lift Height151 in
Fork Tine Length49 in

Transmission

Transmission specifications
Max Speed - Forward24.3 mph
Max Speed - Reverse16.5 mph
Transmission TypeSmooth shift powershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - struck2.60 yd³
Dump Clearance at Max Raise113 in
Bucket Width108 in
